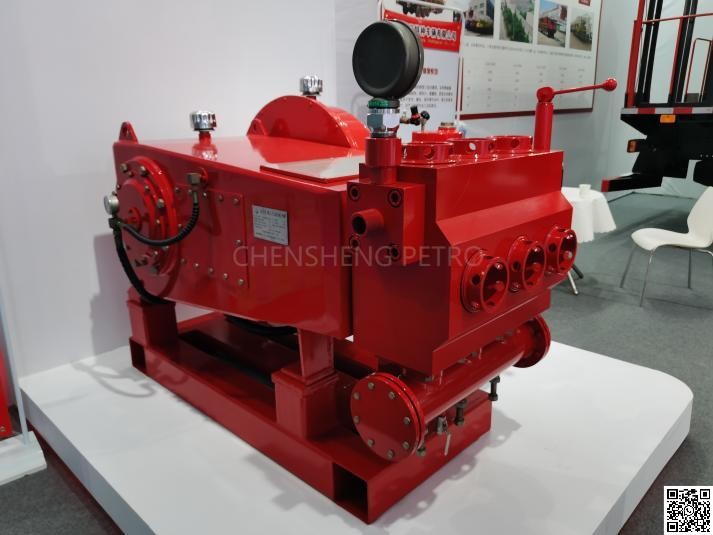

Mud Pump

PRODUCT PARAMETER
	ZYF-800	ZYF-1000	ZYF-1300	ZYF-1600	ZY3NB-1300	ZY3NB-1600
Rated Input Power Hp(kW)	800(590)	1000(740)	1300(960)	1600(1180)	1300(960)	1600(1180)
Strokes per Minute spm (min-1)	150	140	120
Stroke in (mm)	9(228.6)	10(254)	12(305)
Gear ratio	4.185	4.207	4.206			4.19
Rated Rotate Speed of Driving Shaft Rpm (r/min)	628	589	505			503
Max. Working Pressure psi (MPa)	4975(34.3)
Valve Size	6# (API)		7# (API)
Max. Diameter of Liner in (mm)	6 3/4 (171.45)		7 (177.8 )		7 (180)	7 1/2 (190)
Dia. of Suction Pipe in (mm)	10 (254)	12 (305)	12 (305)
Dia. of Discharge Pipe in (mm)	5 1/8 (130)				4 (100)
Overall Dimension (L×W×H) in (mm)	156×81×67 (3963×2057.4×1694)	168×93×72 (4269×2350×1818)	183×95×80 (4650×2413×2017)		211×110×123 (5360×2795×3120)	216×122×125 (5480×2850×3180)
Weight lbs. (kg)	31967 (14500)	41425 (18790)	57000 (25855)	58603 (26582)	53343 (24196)	61063 (27698)
