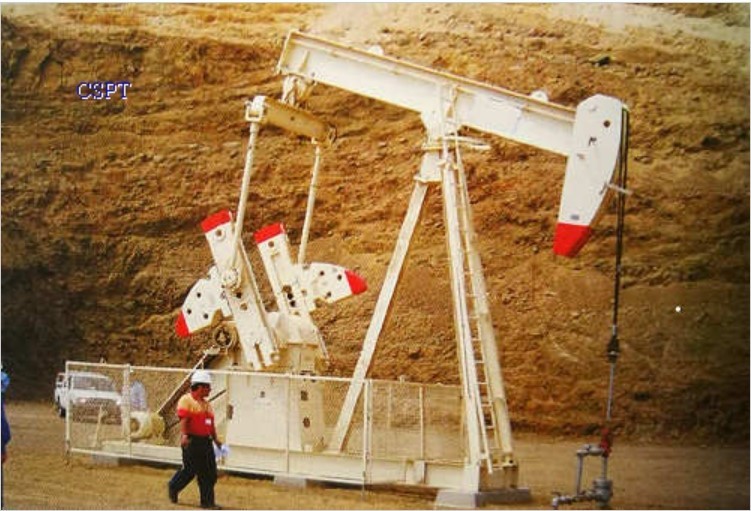

C series pumping unit

PRODUCT PARAMETER
Model	Rated Polished Rod Capacity(kN)	Stroke(m)	Frequency of Stroke (rpm)	Gearbox rated torque (kN·m)
CYJ3-1.5-9HB	30	1.5/1.2/0.9	6/9/12	9
CYJ4-1.5-9HB	40	1.5/1.2/0.9	6/9/12	9
CYJ5-1.8-13HB	50	1.8/1.5/1.2	6/9/12	13
CYJ5-2.5-18HB	50	2.5/2.0/1.5	6/9/12	18
CYJ6-2.5-26HB	60	2.5/2.0/1.5	6/9/12	26
CYJ8-3-37HB	80	3/2.5/2.0	6/9/12	37
CYJY10-3-53HF	100	3/2.5/2.1	6/9/12	53
CYJY10-4.2-53HF	100	4.2/3.5/2.8	5/6/8	53
CYJY12-4.8-73HF	120	4.8/3.6/2.5	4/6/8	73
CYJB12-4.8-53HB	120	4.8/3.9/3.0	4/6/8	53
CYIBG12-4.8-53HB	120	4.8/4.2/3.6/3.0	4/6/8	53
CYJBG14-4.8-53HB	140	4.8/4.5/4.2/3.9/3.6/3.3	4/5/6	53
CYJY14-4.8-73HF/A	140	4.8/3.9/3.1	4/6/8	73
CYJY14-4.8-73HF/B	140	4.8/3.9/3.1	4/5/6	73
CYJY14-4.8-73HF/C	140	4.8/3.9/3.1	4/6/8	73
CYJY16-5.4-89HF	160	5.4/4.5/3.6	4/5/6	89
CYJY16-5.4-89HF/B	160	5.4/4.5/3.6	4/5/6	89
CYJ3-1.5-4.6HY	30	1.5/1.1	4/5/6	4.6
CYJ4-1.5-4.6HY	40	1.5/1.1	4/5/6	4.6
CVI₅-2.1-9HY	50	2.1/1.7/1.3	4/5/6	9
CY16-2.5-26HY	60	2.5/2.0/1.5	5/6/7	26
CYJ8-3-37HY	80	3/2.4/1.8	4/5/6	37
CYJY10-3-37HY	100	3/2.4/1.8	4/5/6	37
