90T workover rig（350hp)

PRODUCT PARAMETER
Model			ZJ10/600Z	ZJ15/900Z	ZJ20/1200Z	Z130/15002	ZJ40/1800Z
Nominal drilling depth (4-1/2"DP)		m	1000	1500	2000	3000	4000
Carrier driving form			8×8	10×8	12×8	14×8	14×10
Engine power		BHP	350	540	630	2×540	2×630
Rated hook load		kN	600	900	1200	1500	1800
Max.hook load		kN	900	1350	1580	1800	2250
Max.fastline pull of Main Drum		kN	180	210	210	280	280
Max.fastline pull of Sand Drum		kN	105	105	105	105	105
Working height of Mast		m	29	32	35	38	38
Height of Monkey Board(adjustable)		m	20.6	20.6	20.6	21.7	21.7
Substructure	Height of Suhstructure	m	3, 4	4	4.5, 5	6	6
Substructure	Substructure area(LxW)	m	4×6	5×7	5×7	5×7	5×7
Travelling system form			3×4	4×5	4×5	5×6	5×6

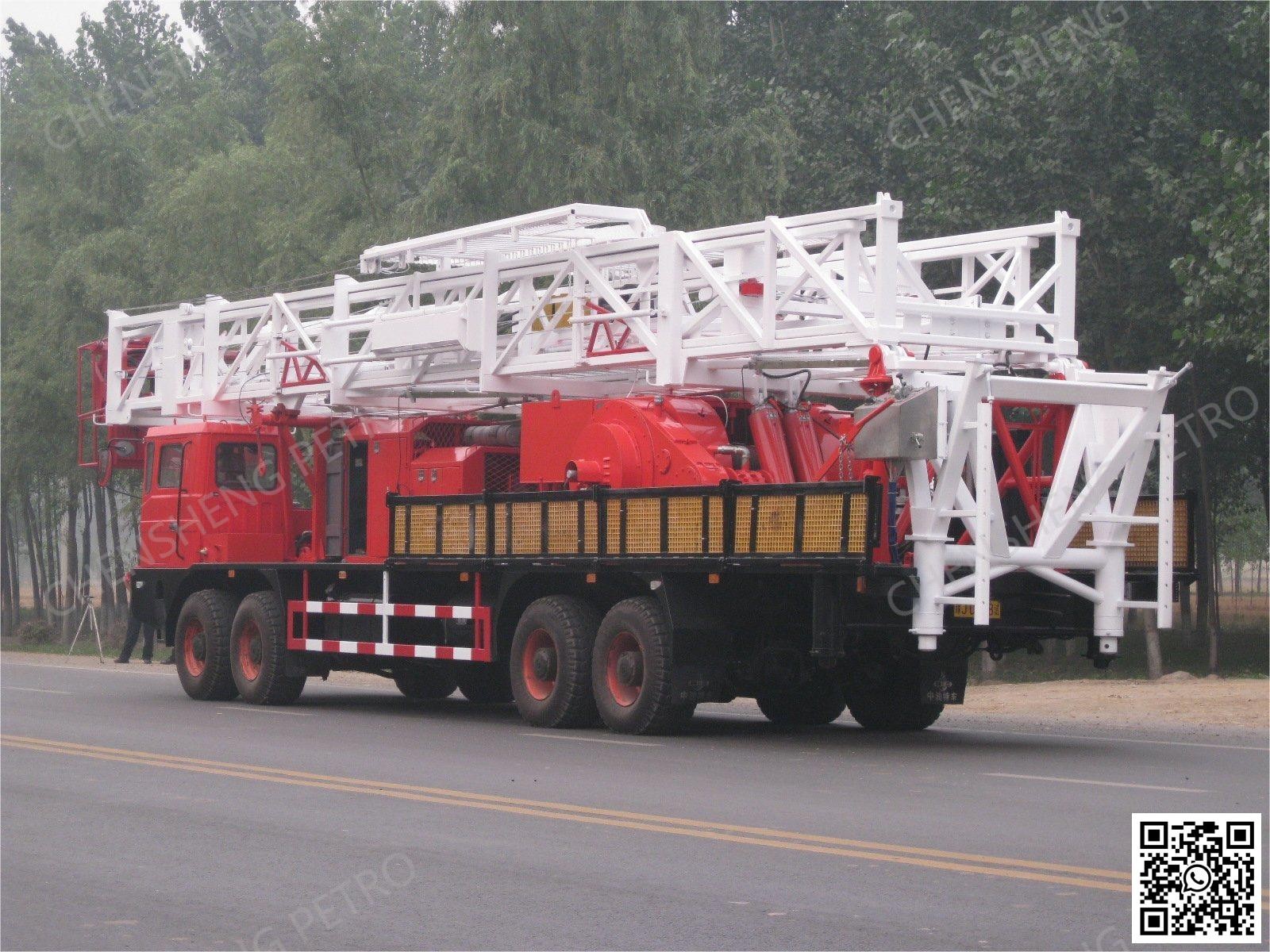

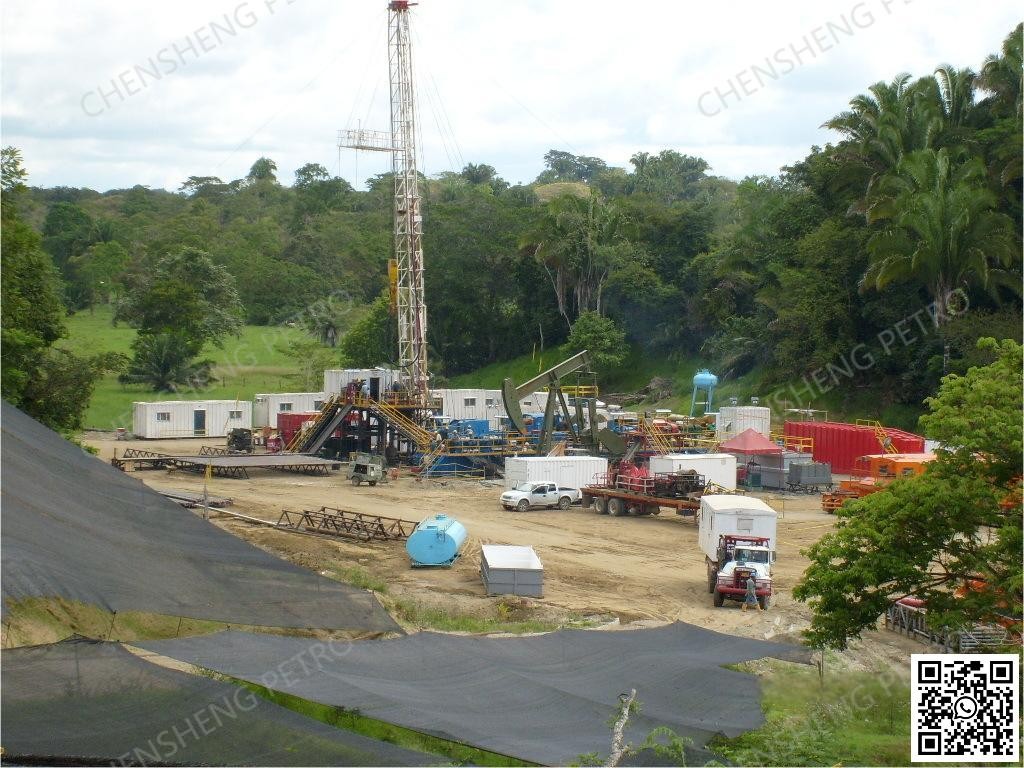

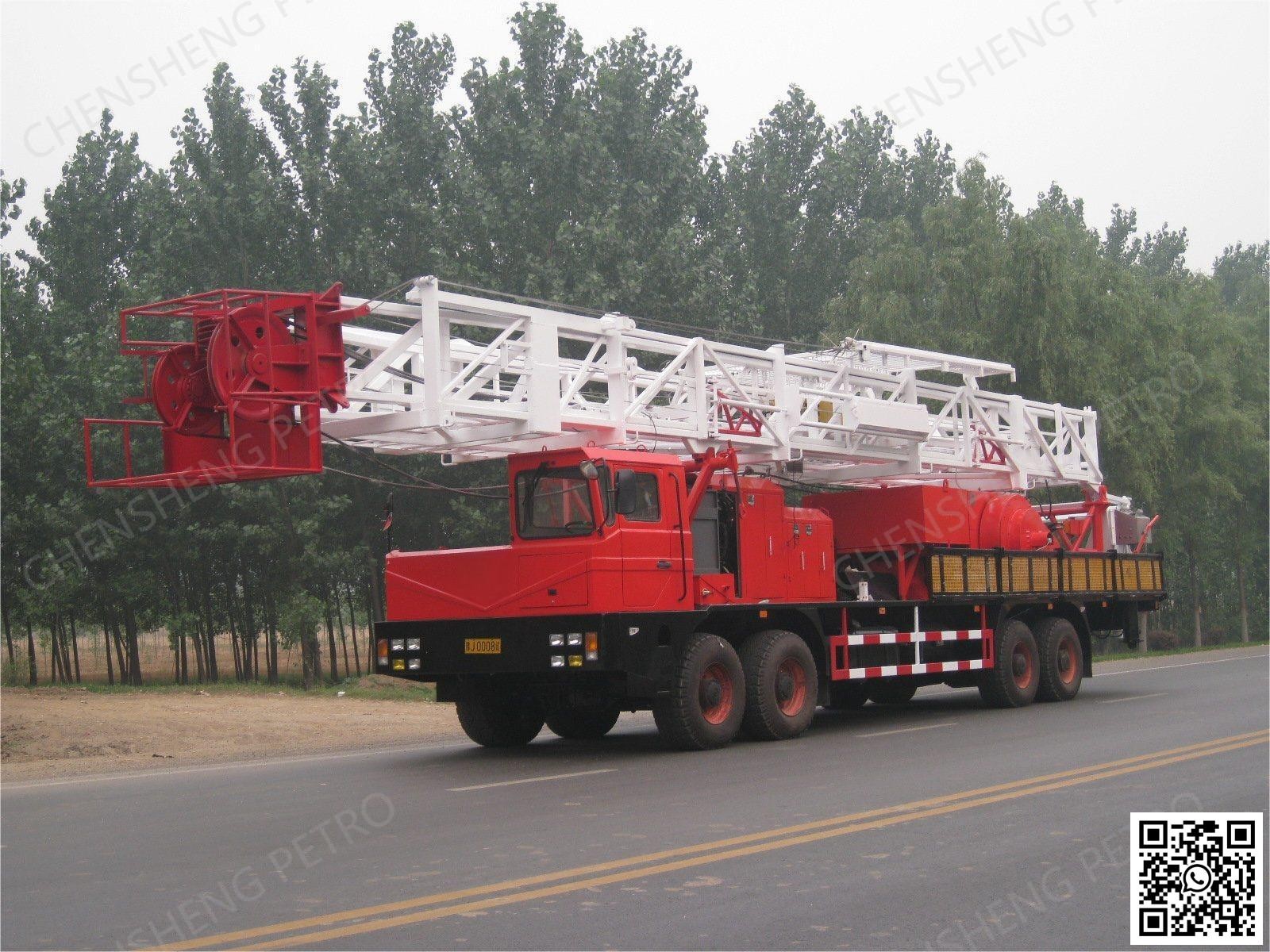

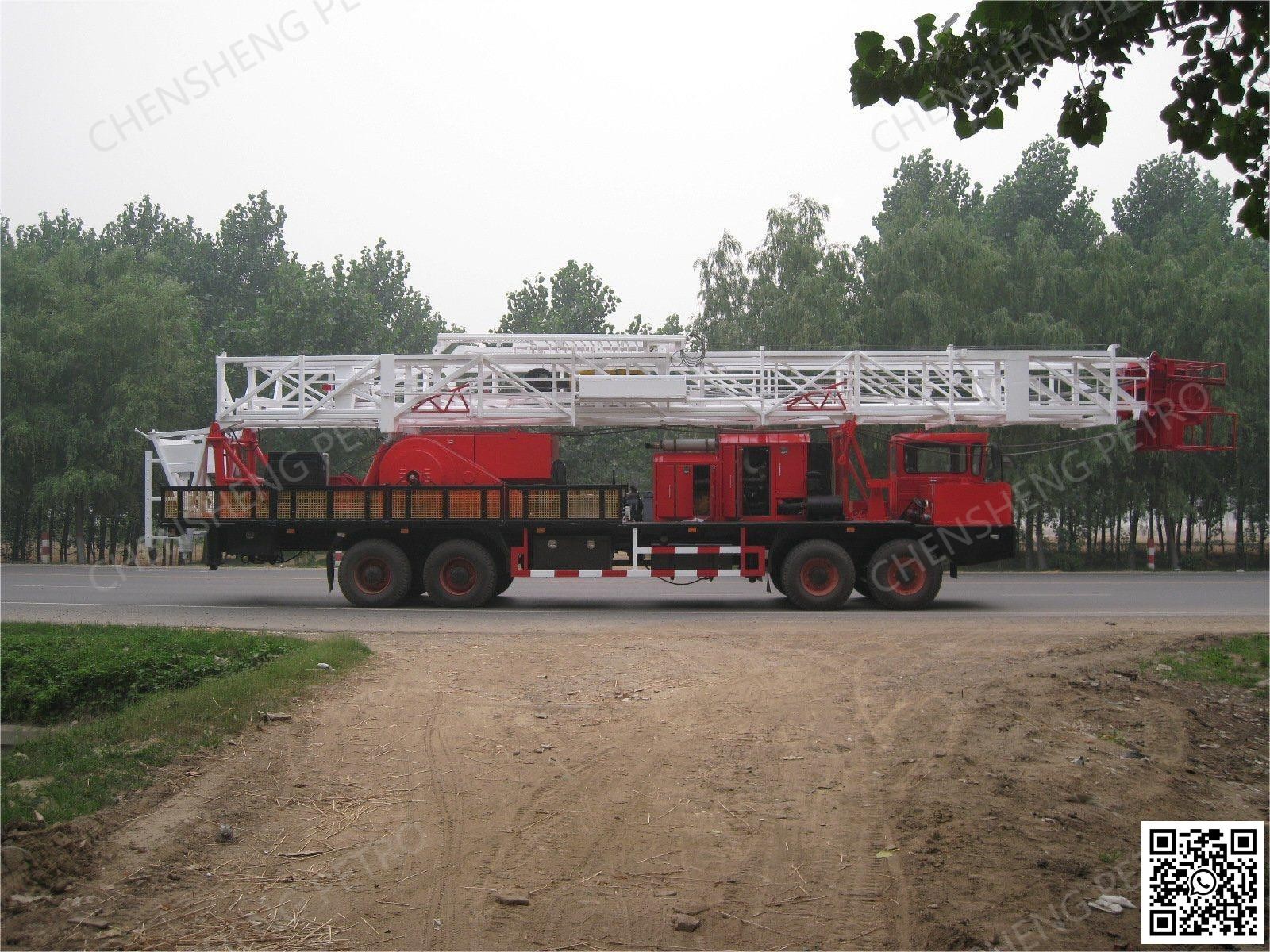

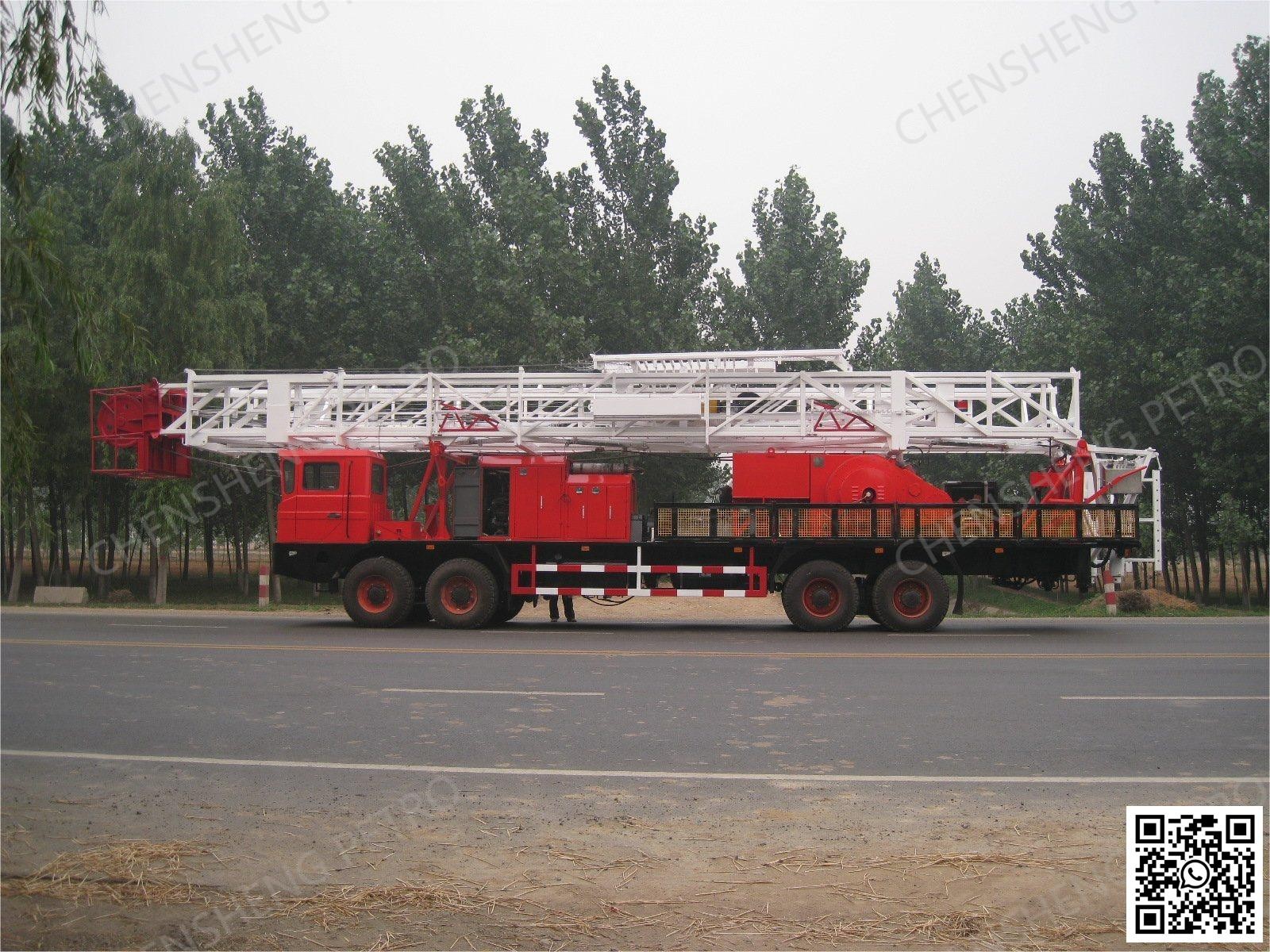

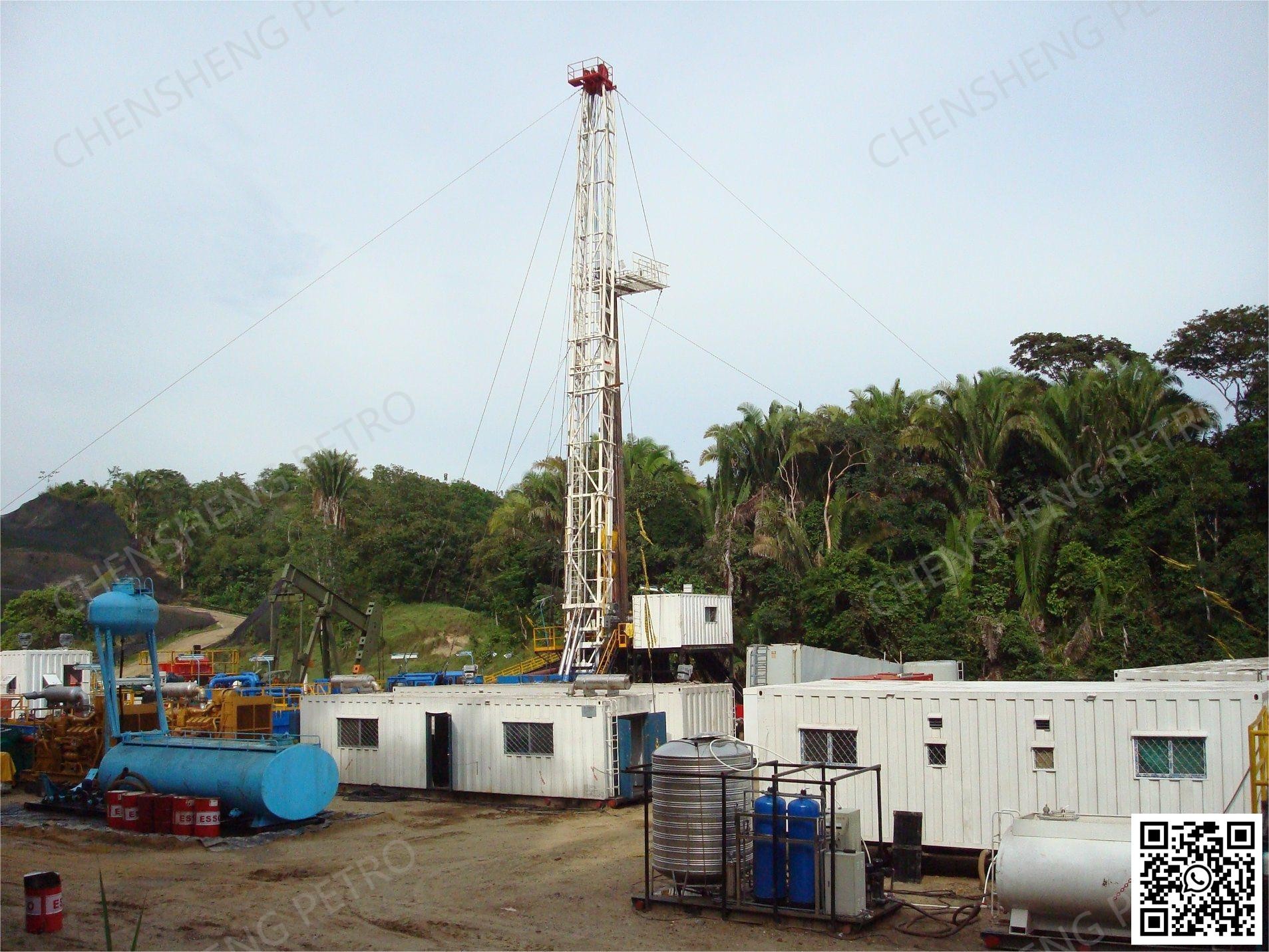

This rig is mainly used for drilling service in 800m -4000m (4-1/2"DP) depth oil, water well and coal gas well eto. Adopts heavy duty carrier 8×8, 10×8, 12×8, 14×8, 14×10, and equipped with hydraulio assist steering system.

CAT and Detroit diesel engine are matched with ALLISON reliability.

Main brake can adopts band or disc brake, auxilary brake can use pneumatic control and water cooling diso brake or water brake.

The rotary table transmission box can realize rotary table forward and reversal rotation,which can satisfy DP and rotary operation.

The design and production of main components confirm to API standards.
