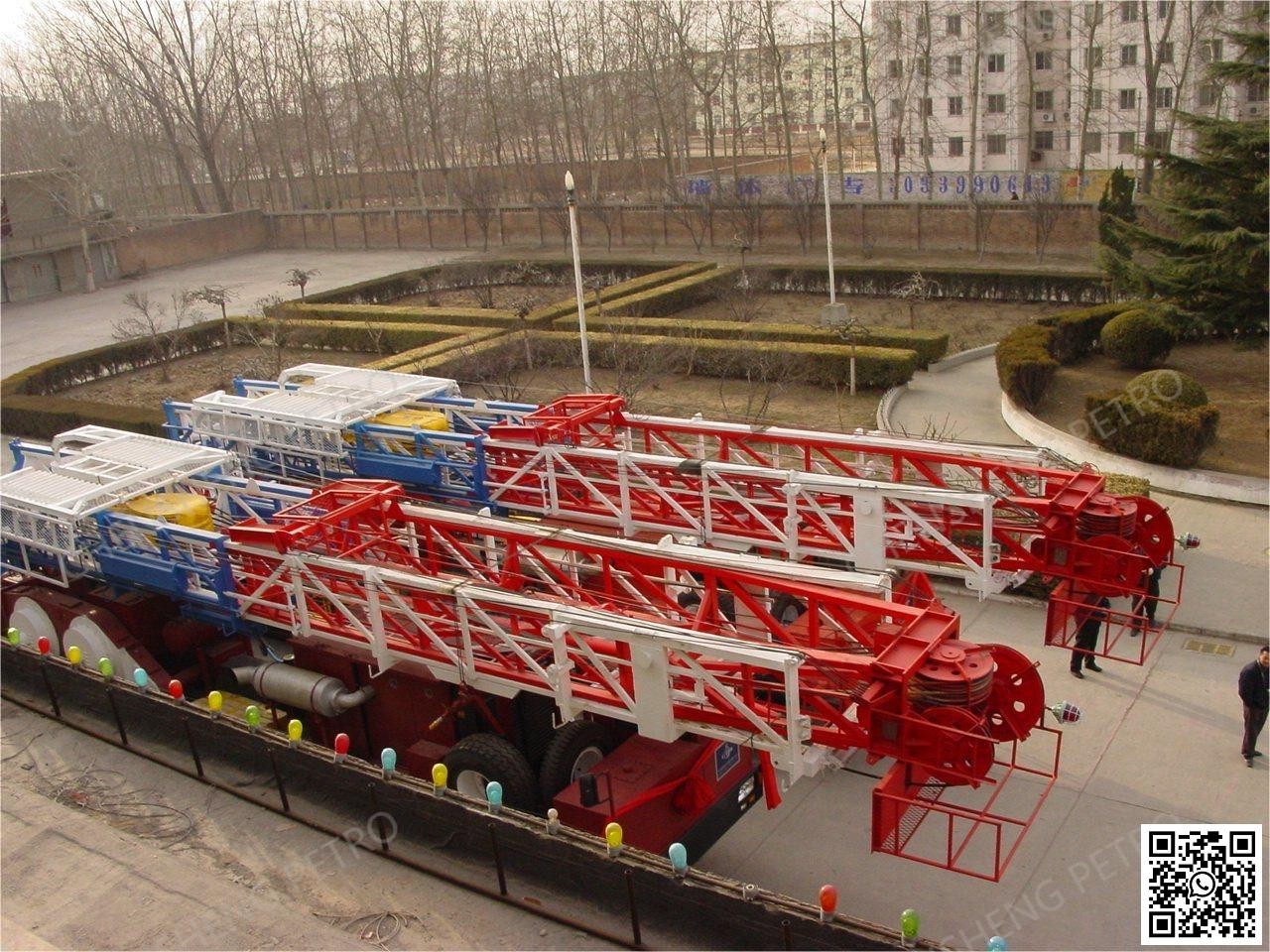

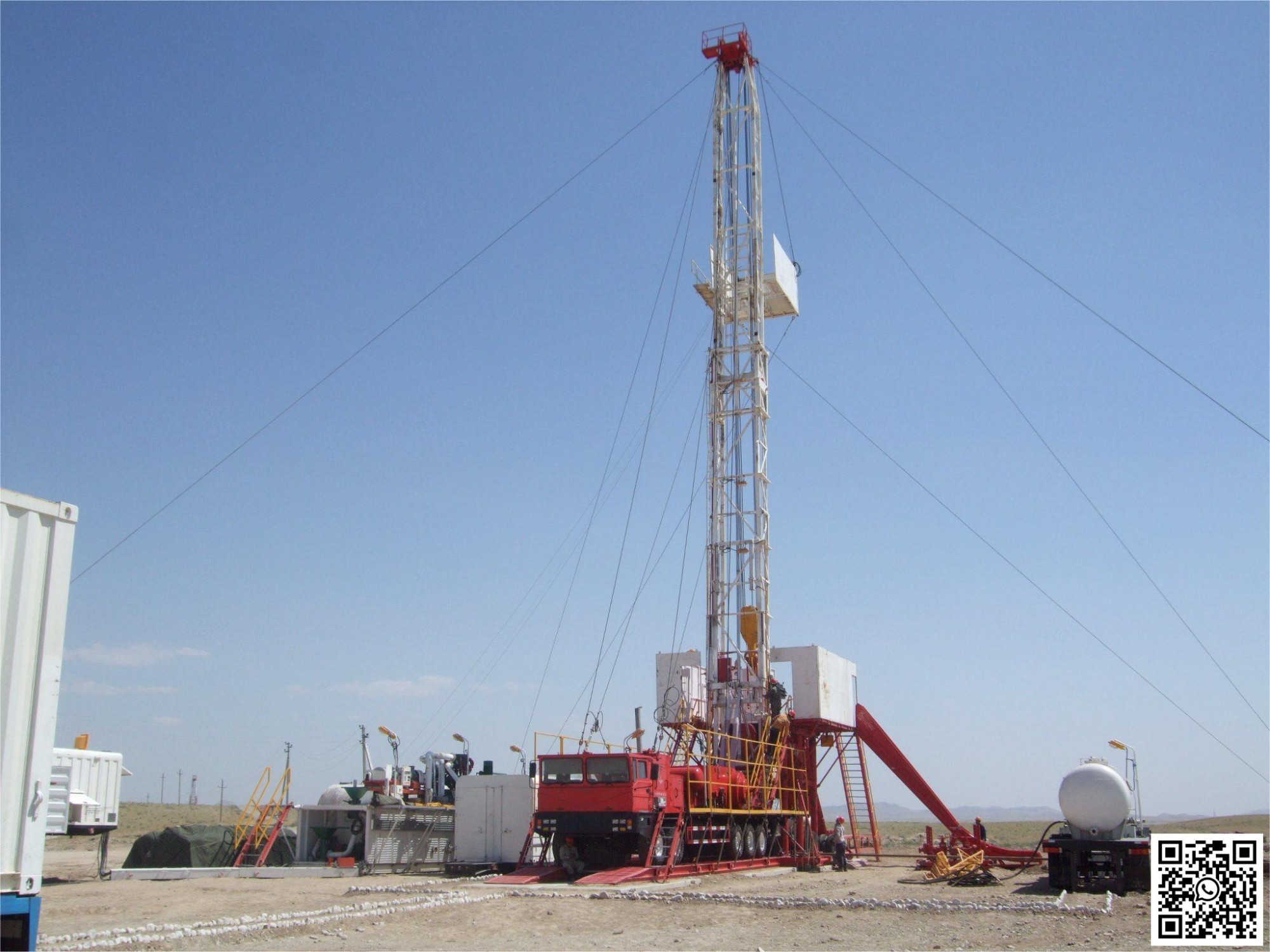

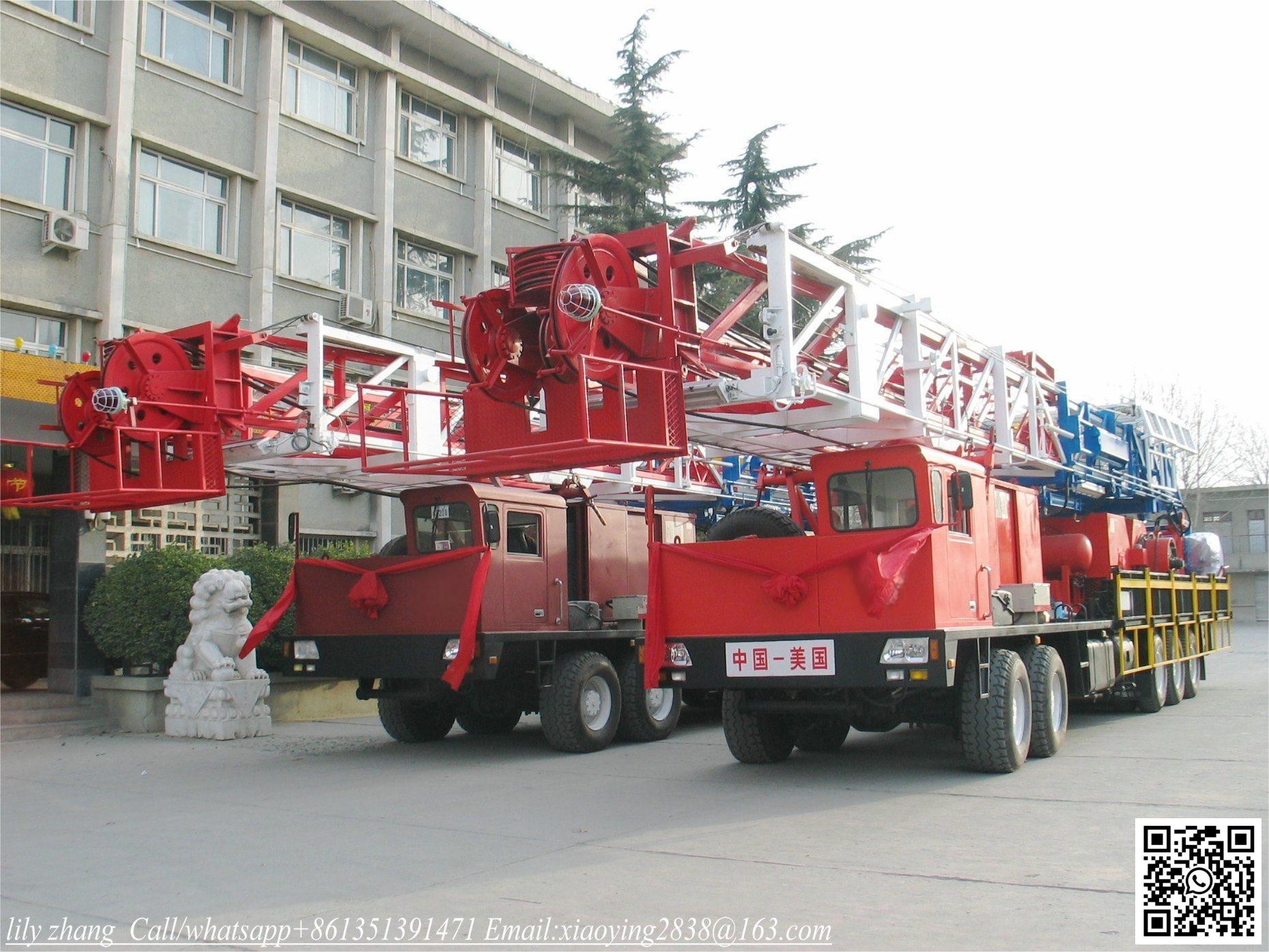

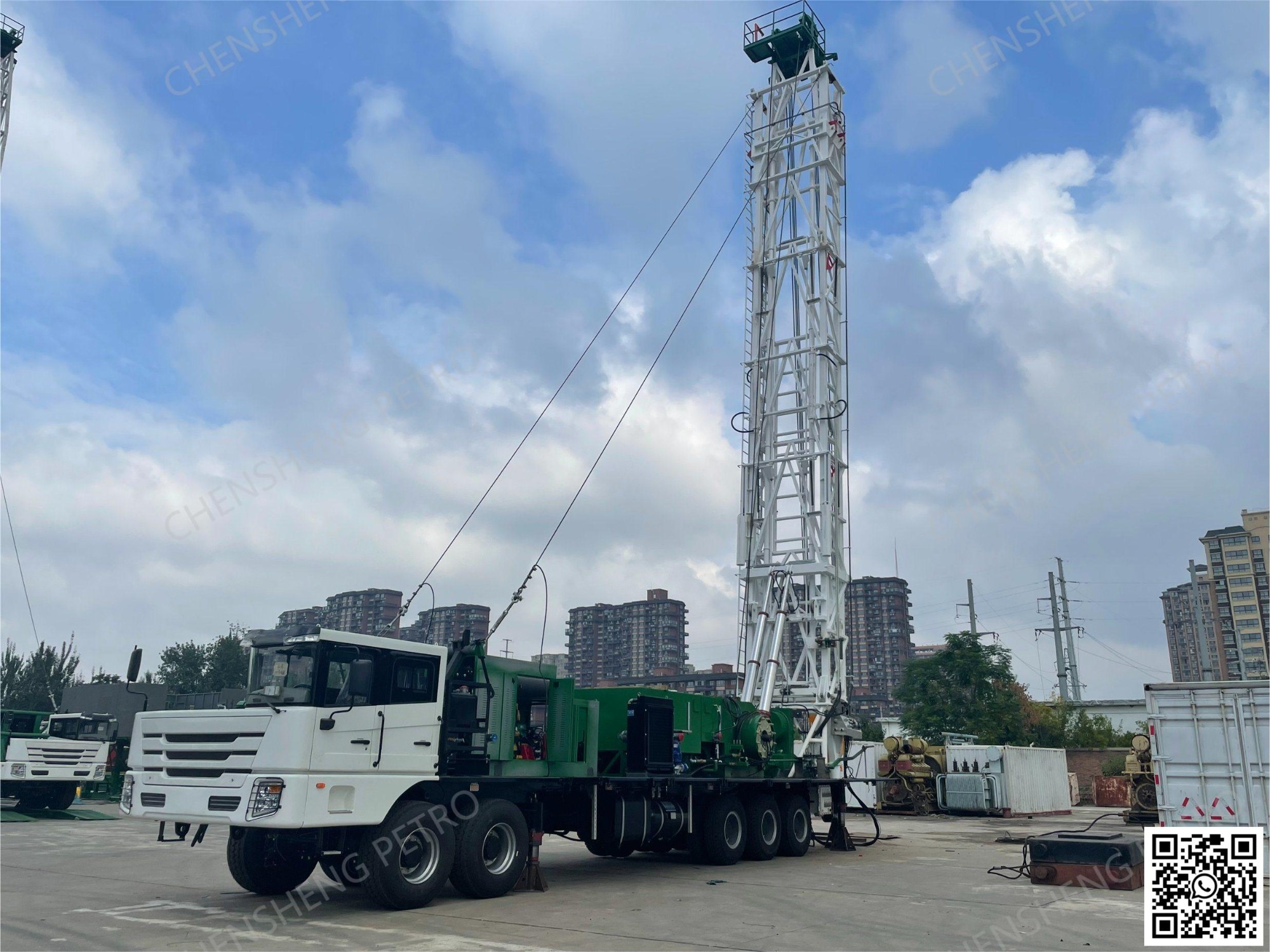

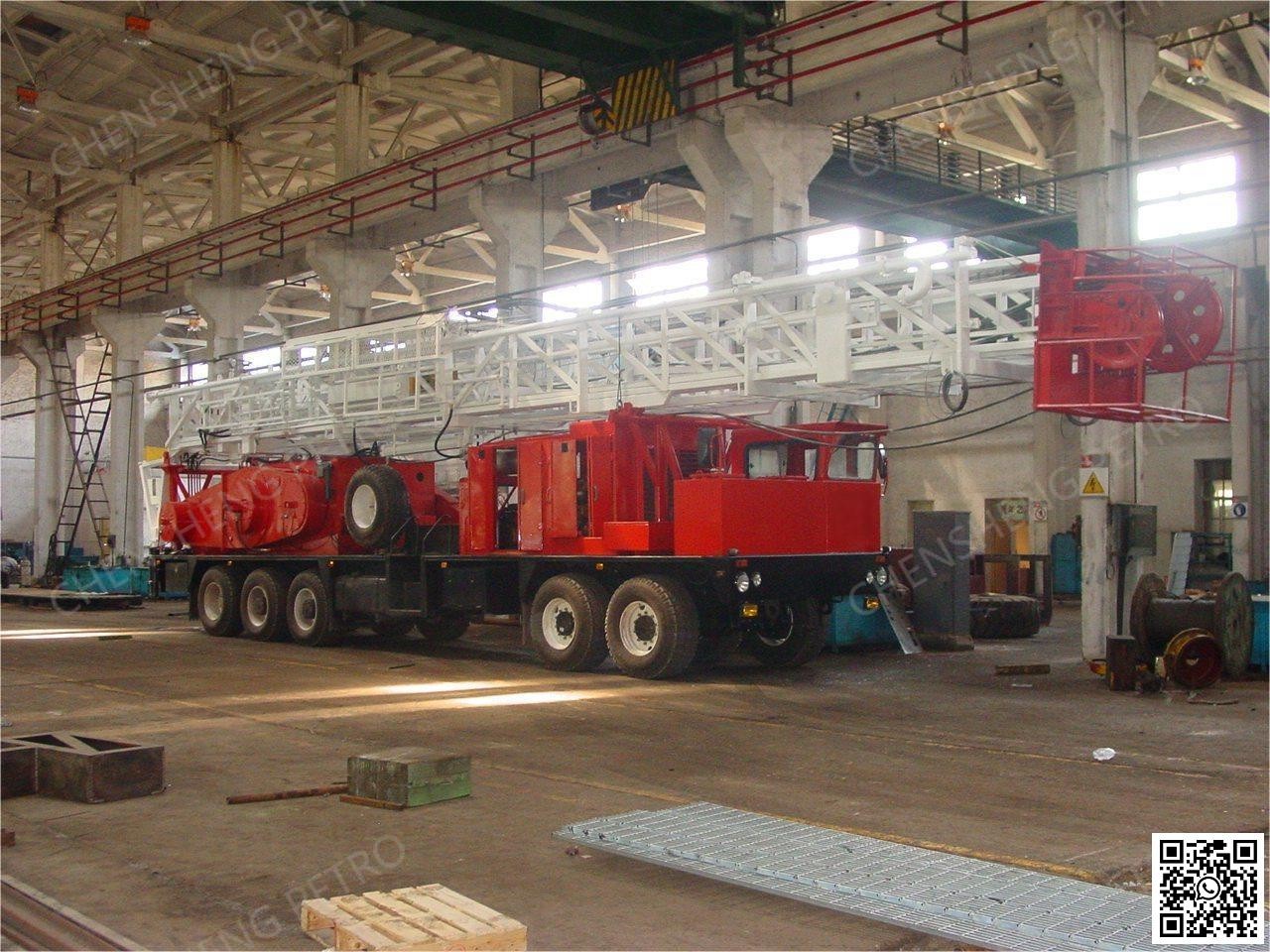

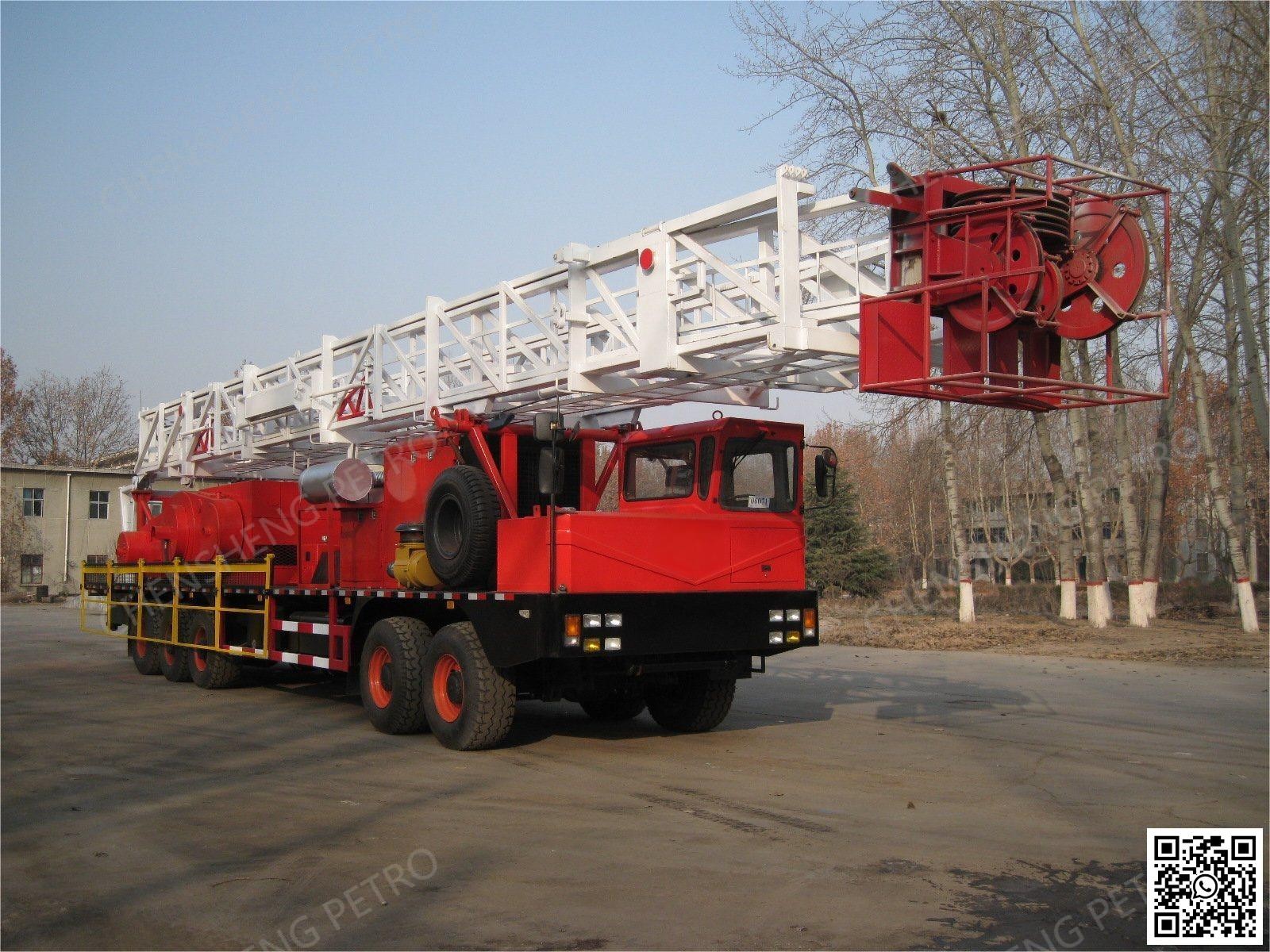

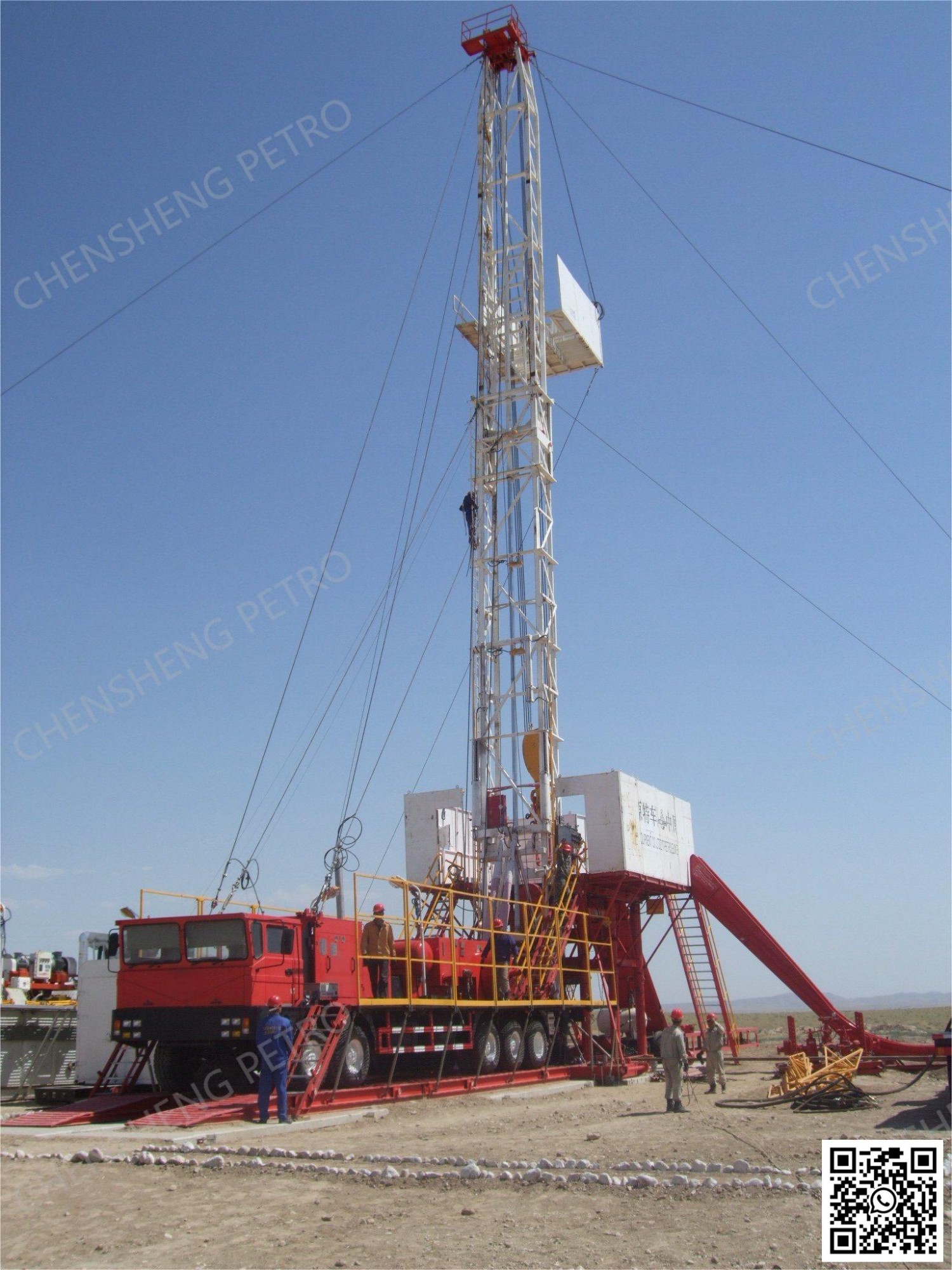

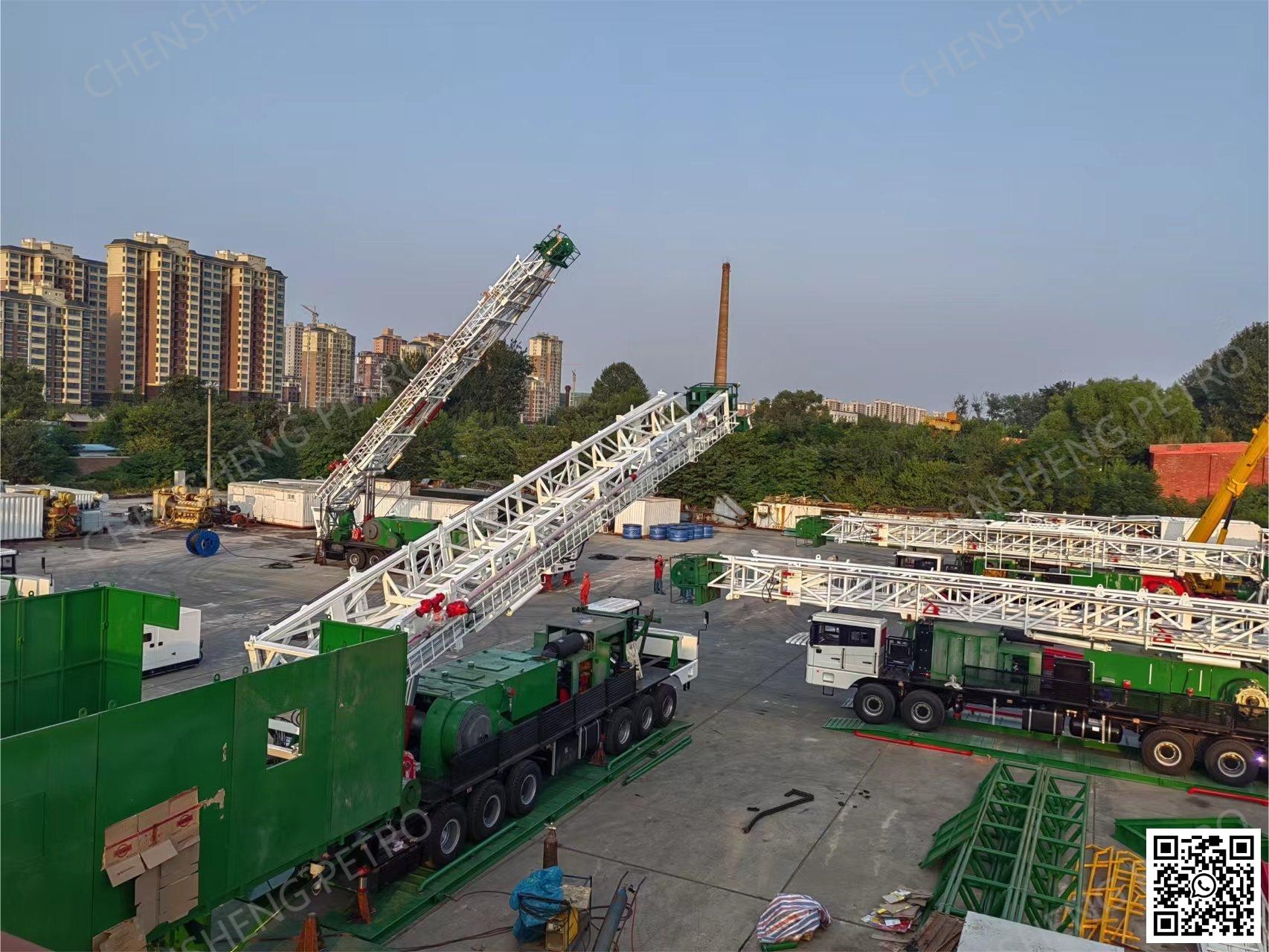

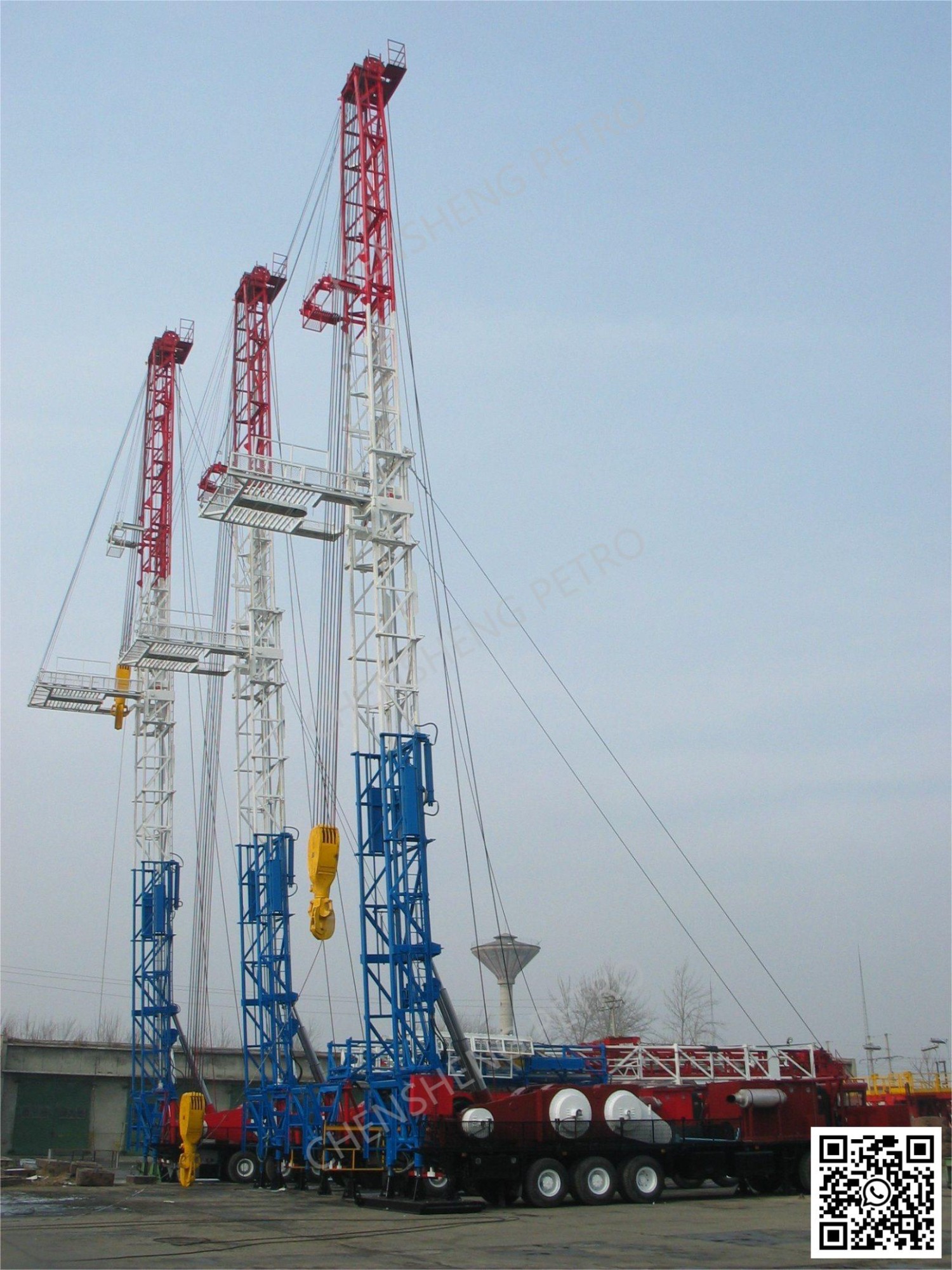

100T workover rig (450hp)

Model

ZJ10/600Z

ZJ15/900Z

ZJ20/1200Z

Z130/1500Z

ZJ40/1800Z

Nominal drilling depth (4-1/2" DP)

m

1000

1500

2000

3000

4000

Carrier driving form

8×8

10×8

12×8

14×8

14×10

Engine power

BHP

350

540

630

2×540

2×630

Rated hook load

kN

600

900

1200

1500

1800

Max.hook load

kN

900

1350

1580

1800

2250

Max.fastline pull of Main Drum

kN

180

210

210

280

280

Max.fastline pull of Sand Drum

kN

105

105

105

105

105

Working height of Mast

m

29

32

35

38

38

Height of Monkey Board(adjustable)

m

20.6

20.6

20.6

21.7

21.7

Substructure

Height of Substructure

m

3, 4

4

4.5, 5

6

6

Substructure area(LxW)

m

4×6

5×7

5×7

5×7

5×7

Travelling system form

3×4

4×5

4×5

5×6

5×6
