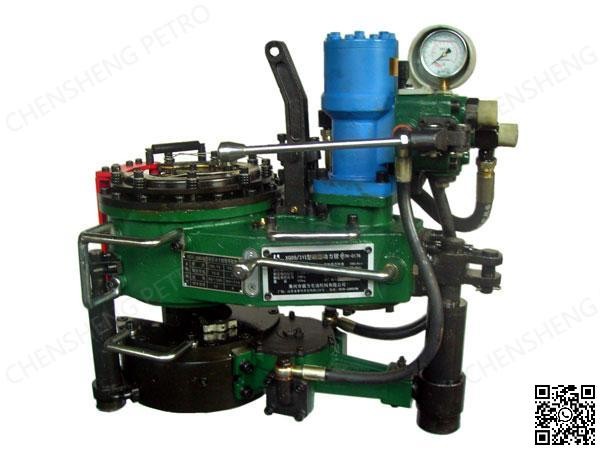

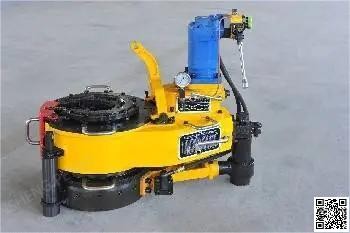

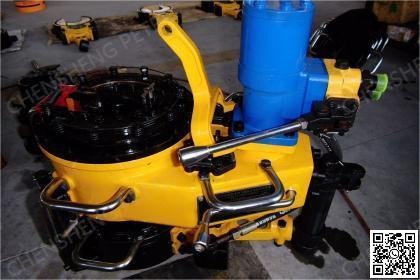

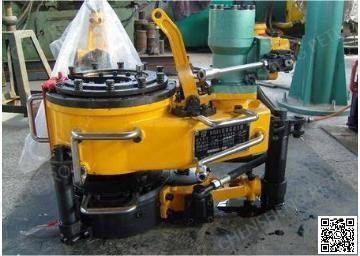

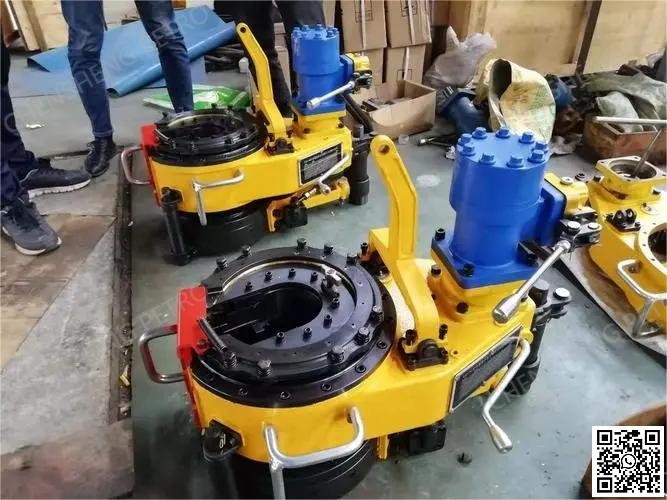

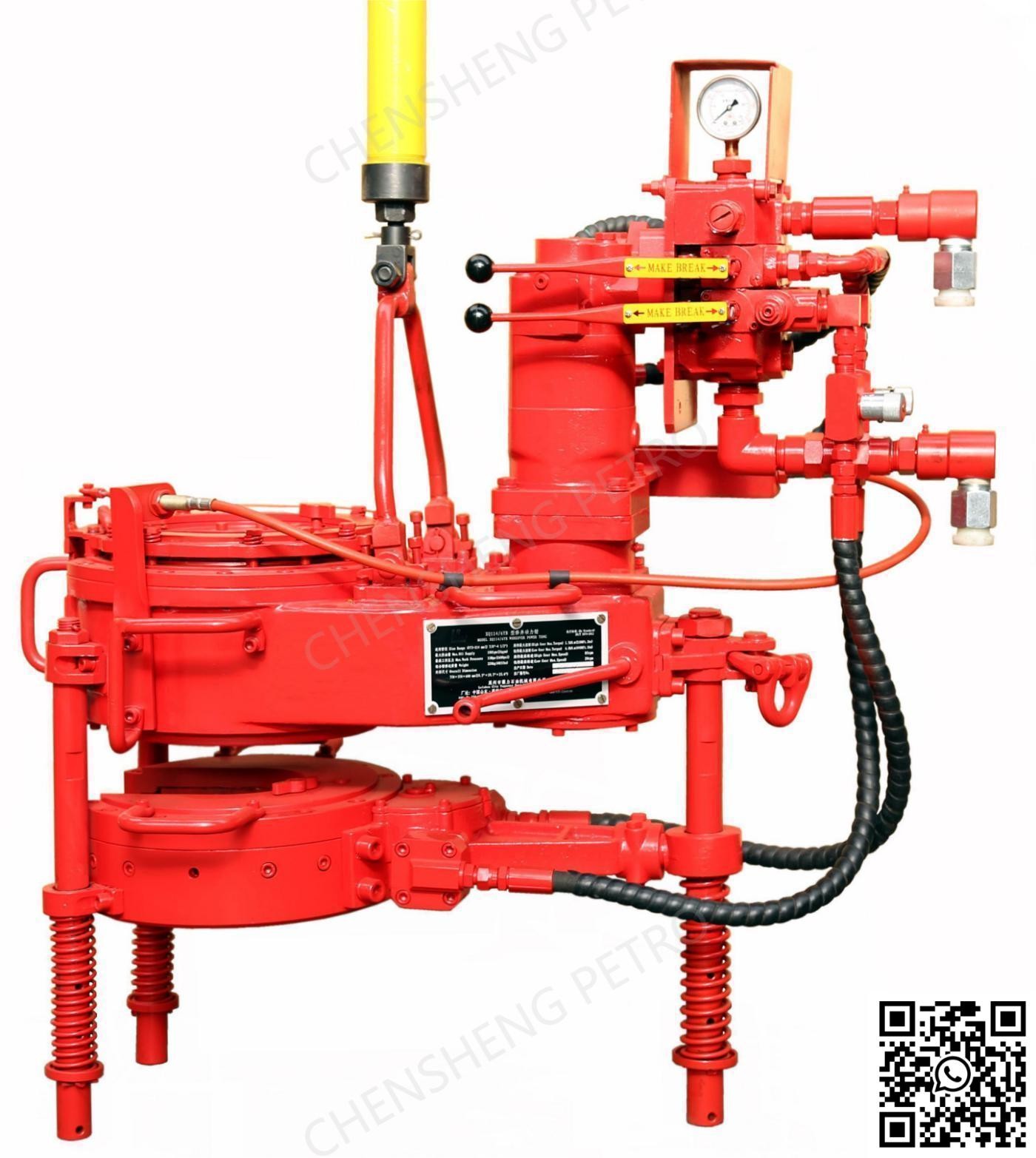

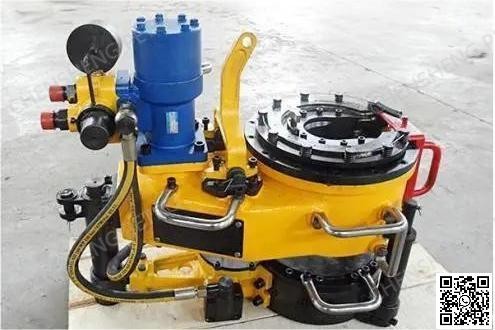

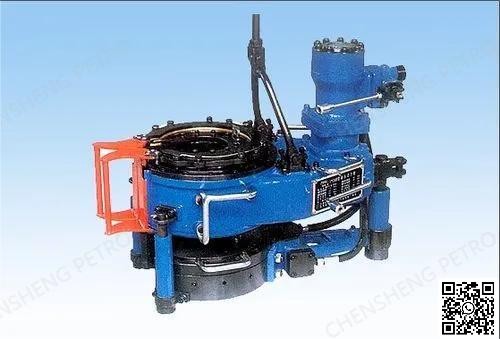

XQ Series Hydraulic Power Tong

XQ series hydraulic power tong is used for make-up/break-out sucker rod, tubing, small casing and small drill pipe in workover service operations.

Products description:

1. Operate the manual reversing valve, master and backup work synchronously.

2. It can equip bilateral sequence control apparatus that is specialized in tubing tong according to the need, so it can realize that the backup tong clamps the tubing tong in advance of master tong and it is more reliable and safer to make up or break out tubing.

3. Both the master tongs and backup tongs adopt two-way clamping mechanism of the internal curved surface roller grade climbing to clamp the tubing. Their structure are simple but reliable.

4. The master tongs are equipped with automatic safety door for safety protection.

With torque control system.

PRODUCT PARAMETER
Model	XQ29/(1.8\2\2.6)	XQ89/3	XQ114/6	XQ140/12	XQ140/20
Master Range	CYG 16,19,22,25,29mm Sucker Rod:5/8,3/4, 7/8,1,1 1/8″	φ60-89mm 2 3/8"-3 1/2"	φ73-114mm 2 7/8"-4 1/2"	φ73-140mm 2 7/8"-5 1/2"	φ73-140mm 2 7/8″-5 1/2″
Backup Range	CYG 16,19,22,25,29mm Sucker Rod:5/8,3/4, 7/8,1,1 1/8″	φ60-114mm 2 3/8″-4 1/2″	φ89-141.5mm 3 1/2″-5 1/8″	φ89-156mm 3 1/2″-6 1/8″	φ89-156mm 3 1/2″-6 1/8″
High Gear Rated of Torque	800N·m 590ft.lbs 1000N·m 740ft.lbs 1100N·m 810ft.lbs	1100N·m 810ft.lbs	1600N·m 1180ft.lbs	2700N·m 2000ft.lbs	2400N·m 1770 ft·lbs
Low Gear Rated of Torque	1800N·m 1330ft.lbs 2000N·m 1480ft.lbs 2600N·m 1920ft.lbs	3000N·m 2210ft.lbs	6000N·m 4420ft.lbs	12000N·m 8860ft.lbs	20000N·m 17700 ft·lbs
High Gear Rated Speed (RPM)	130 120 96	100	80	75	76
Low Gear Rated Speed (RPM)	50 46 36	32	20	14.5	8.7
MWP	10 Mpa 1450 psi	10 Mpa 1450 psi	11 Mpa 1600psi	12Mpa 1740psi	12Mpa 1740psi
Max. Flow	80L/min 21gpm	100 L/min 26 gpm	100 L/min 26 gpm	130 L/min 34 gpm	120 L/min 32 gpm
Dimension (L×W×H) (mm/in)	650x380x500 25.6x15x19.7	650x430x550 25.6x16.9x21.6	900x550x680 35.4x21.7x26.8	1068x582x750 42x22.9x29.5	1150x630x875 45.3x24.8x34.5
Weight	100kg 220lbs	158kg 348lbs	268kg 590lbs	490kg 1080lbs	700kg 1540lbs
