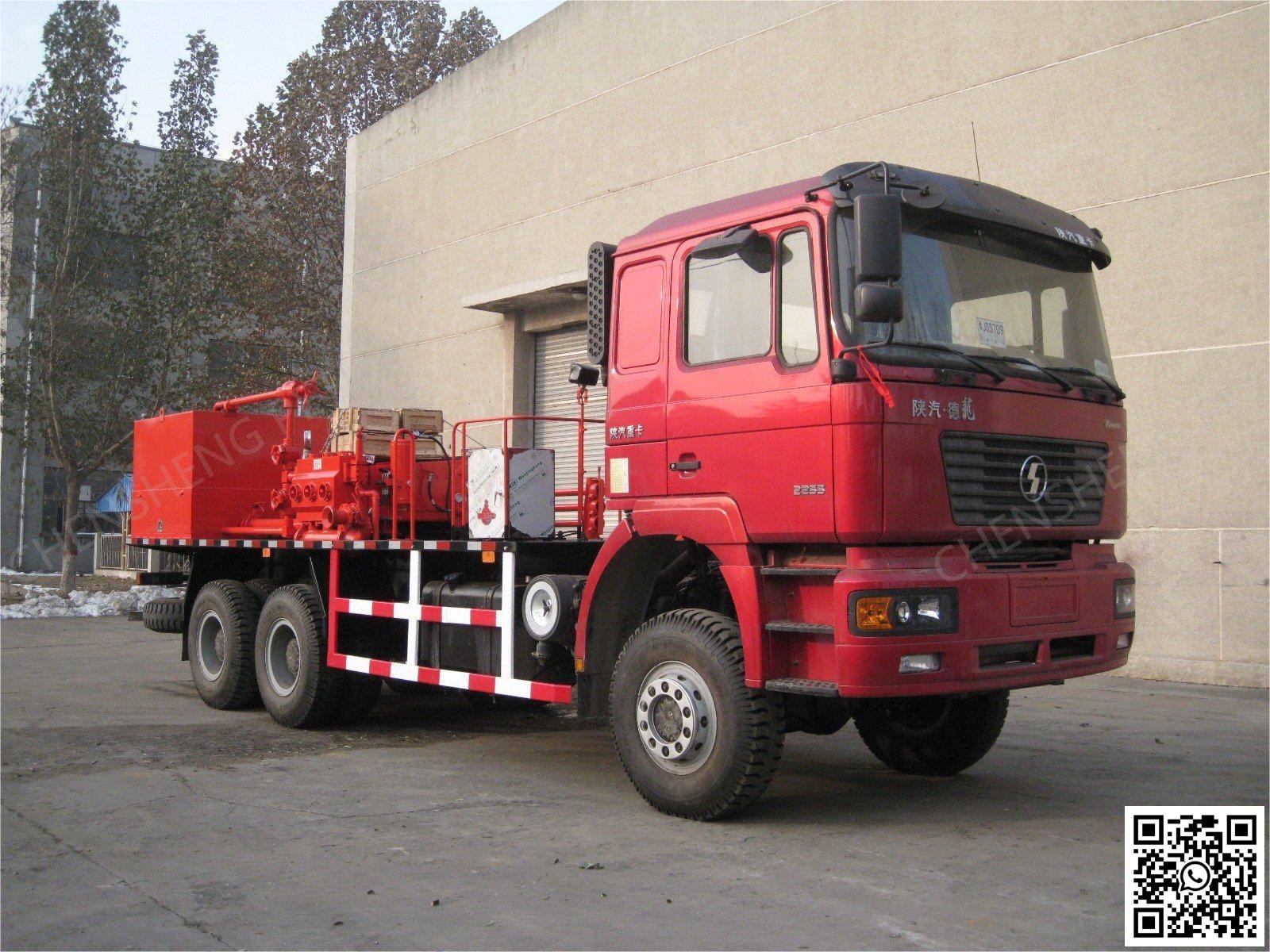

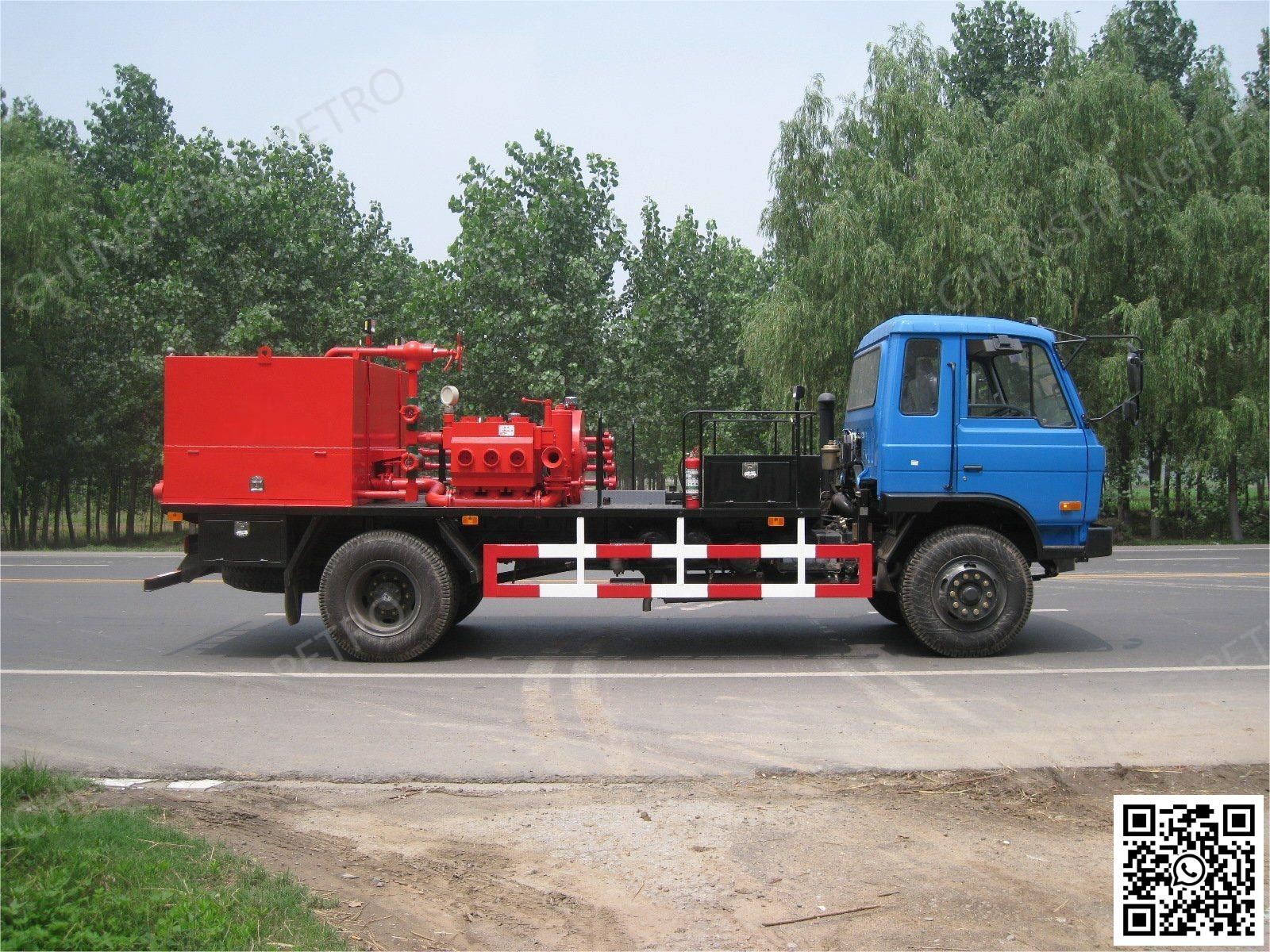

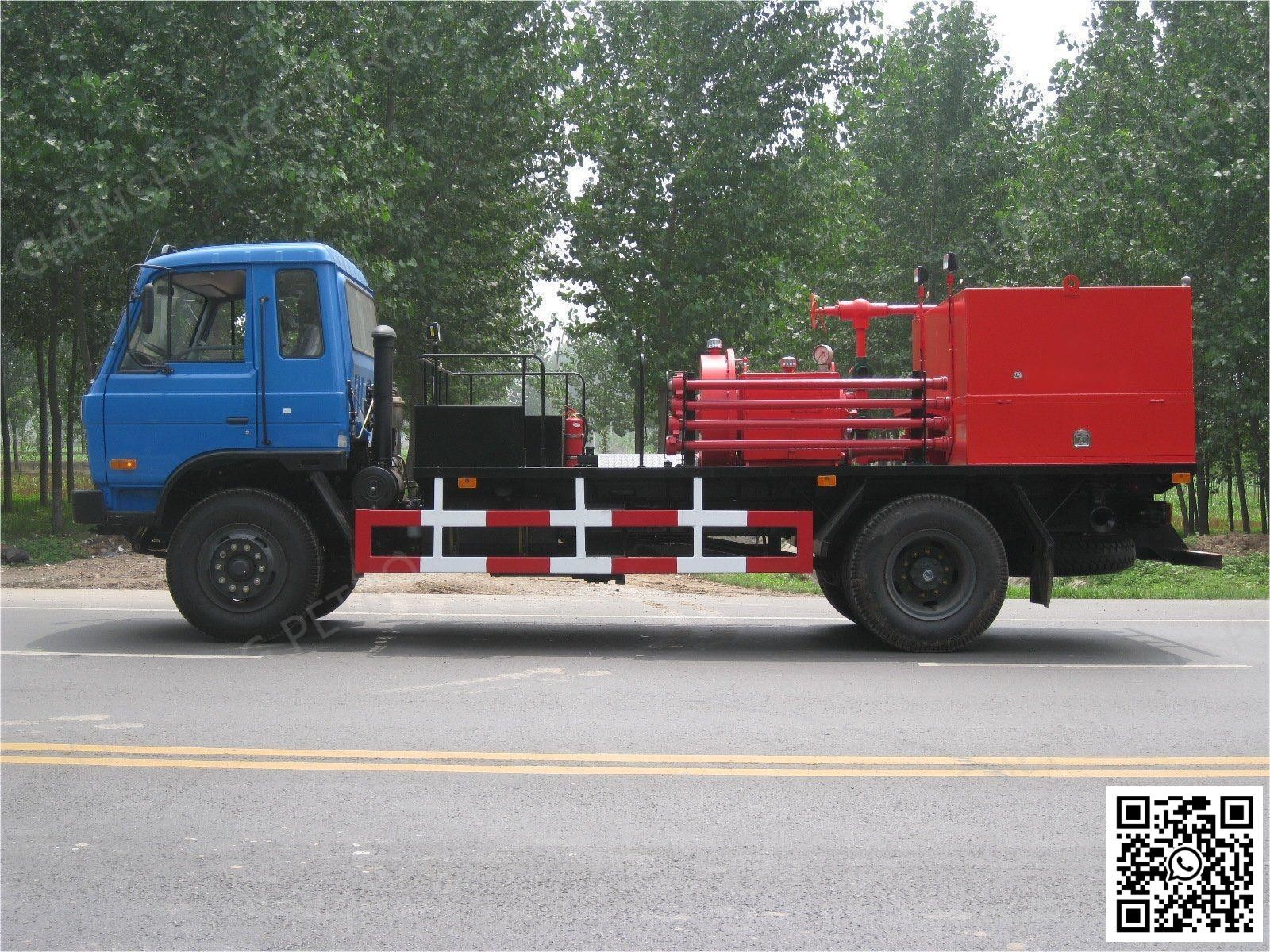

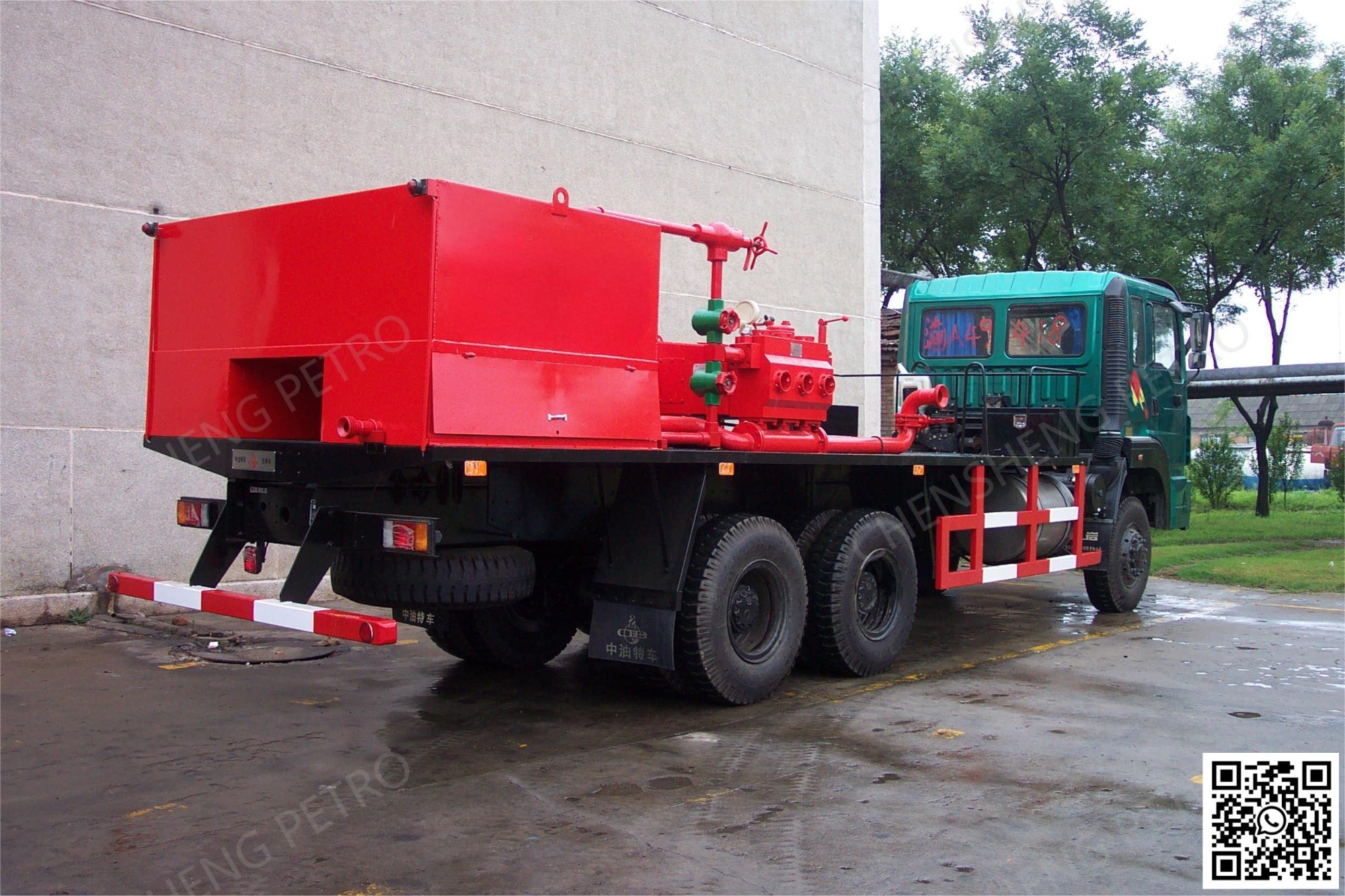

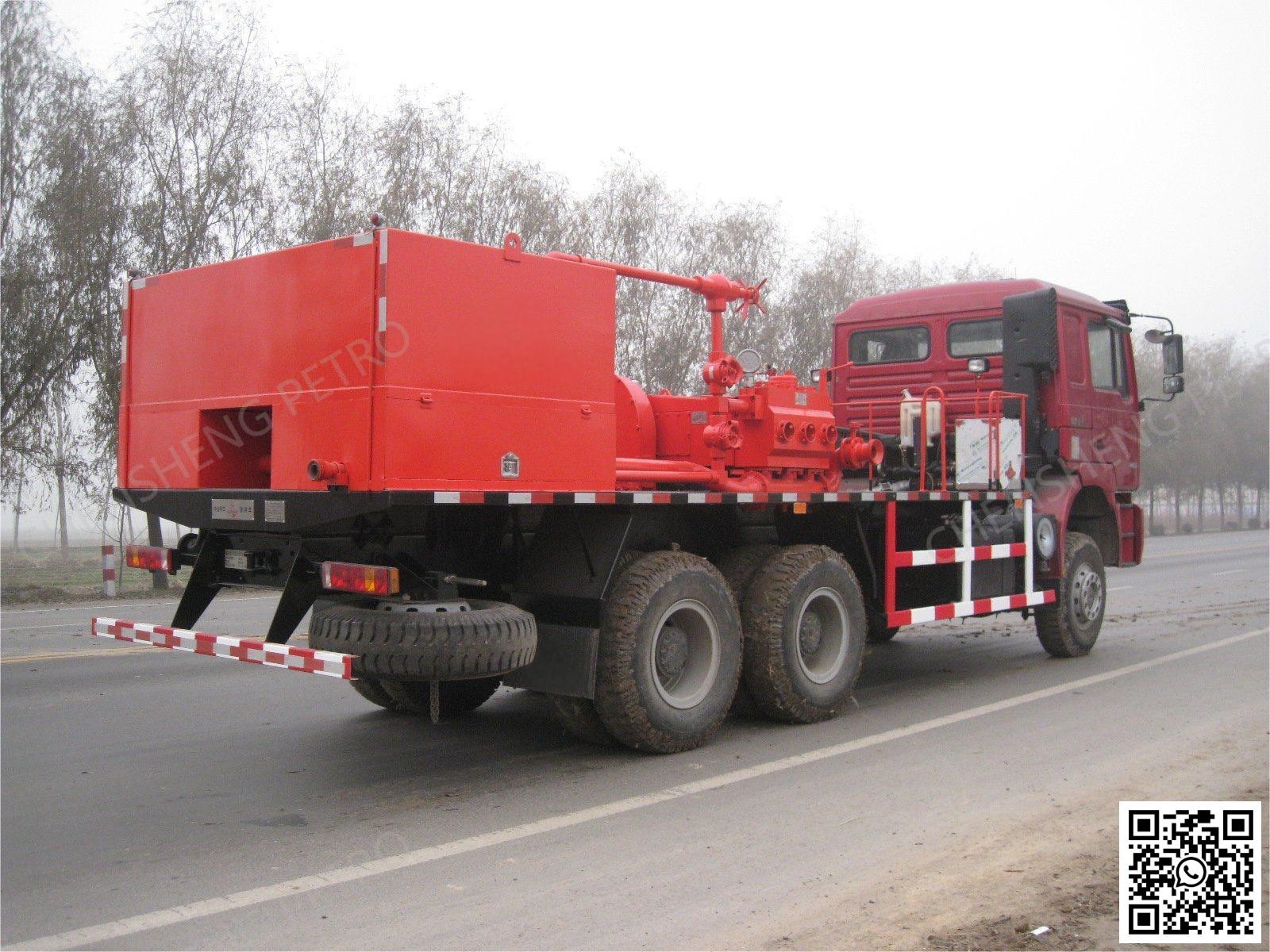

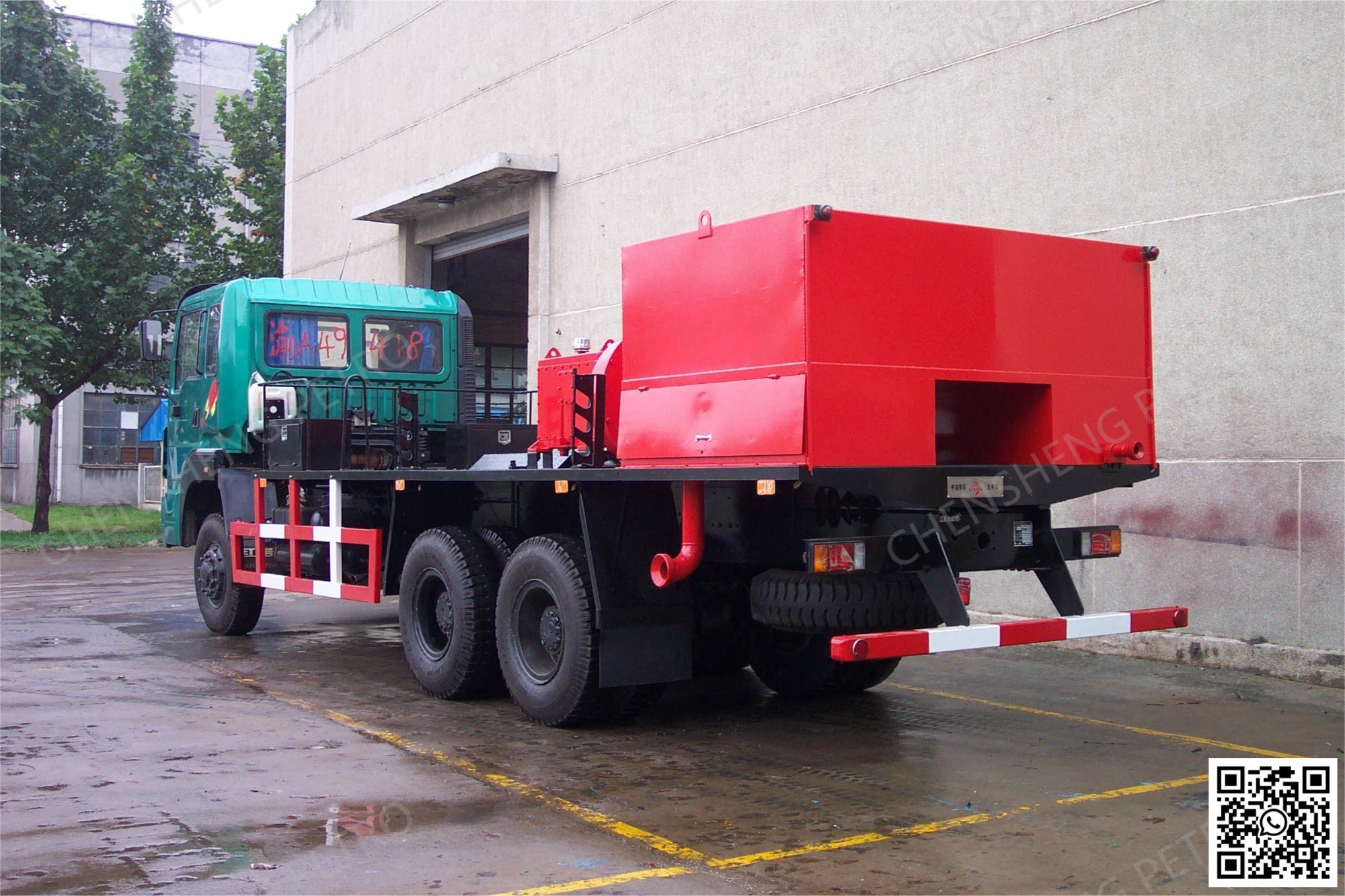

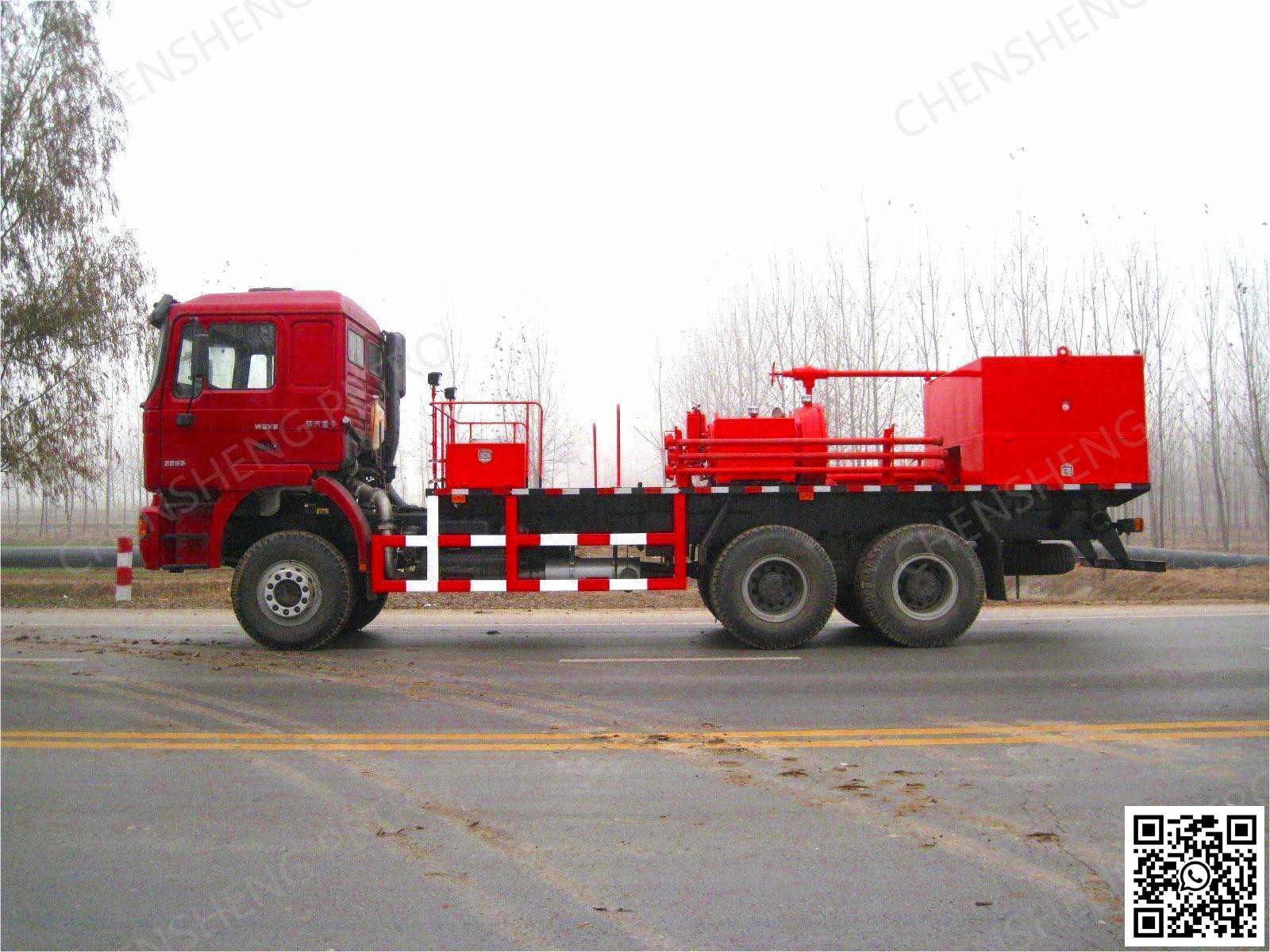

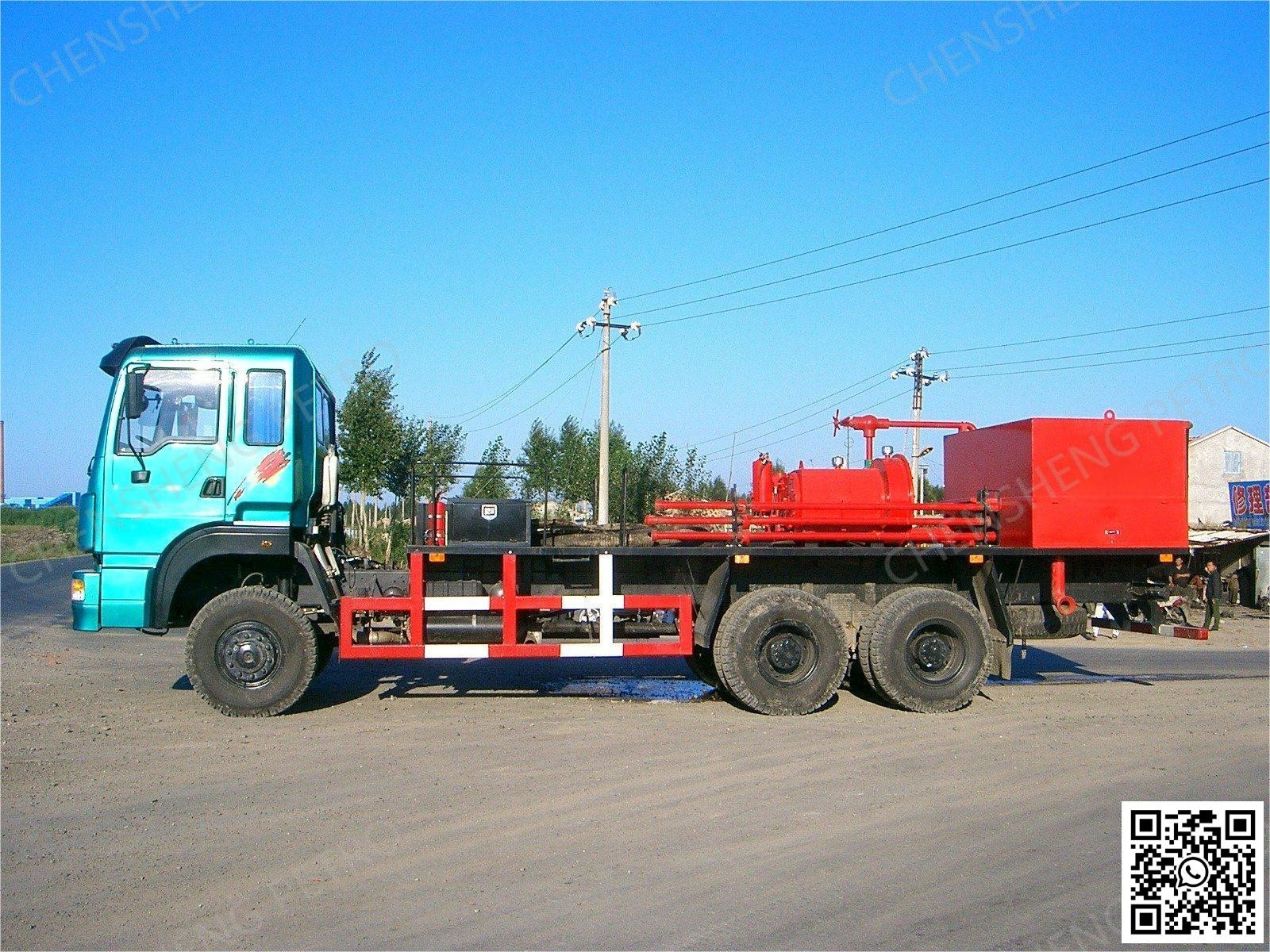

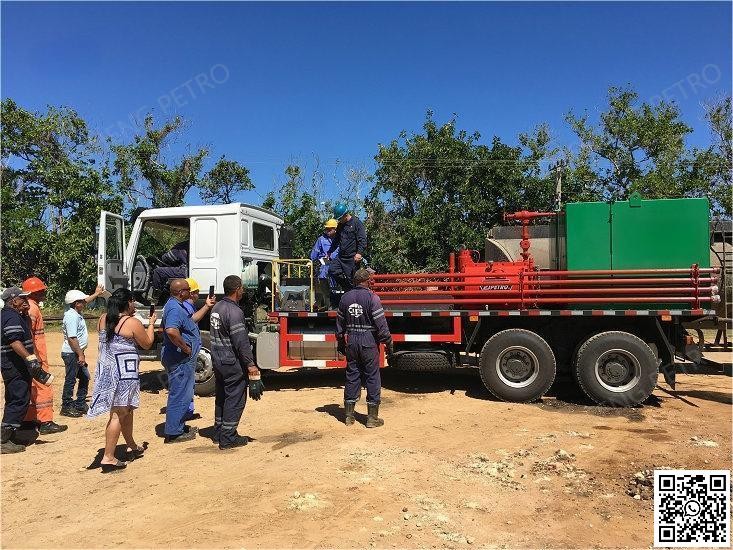

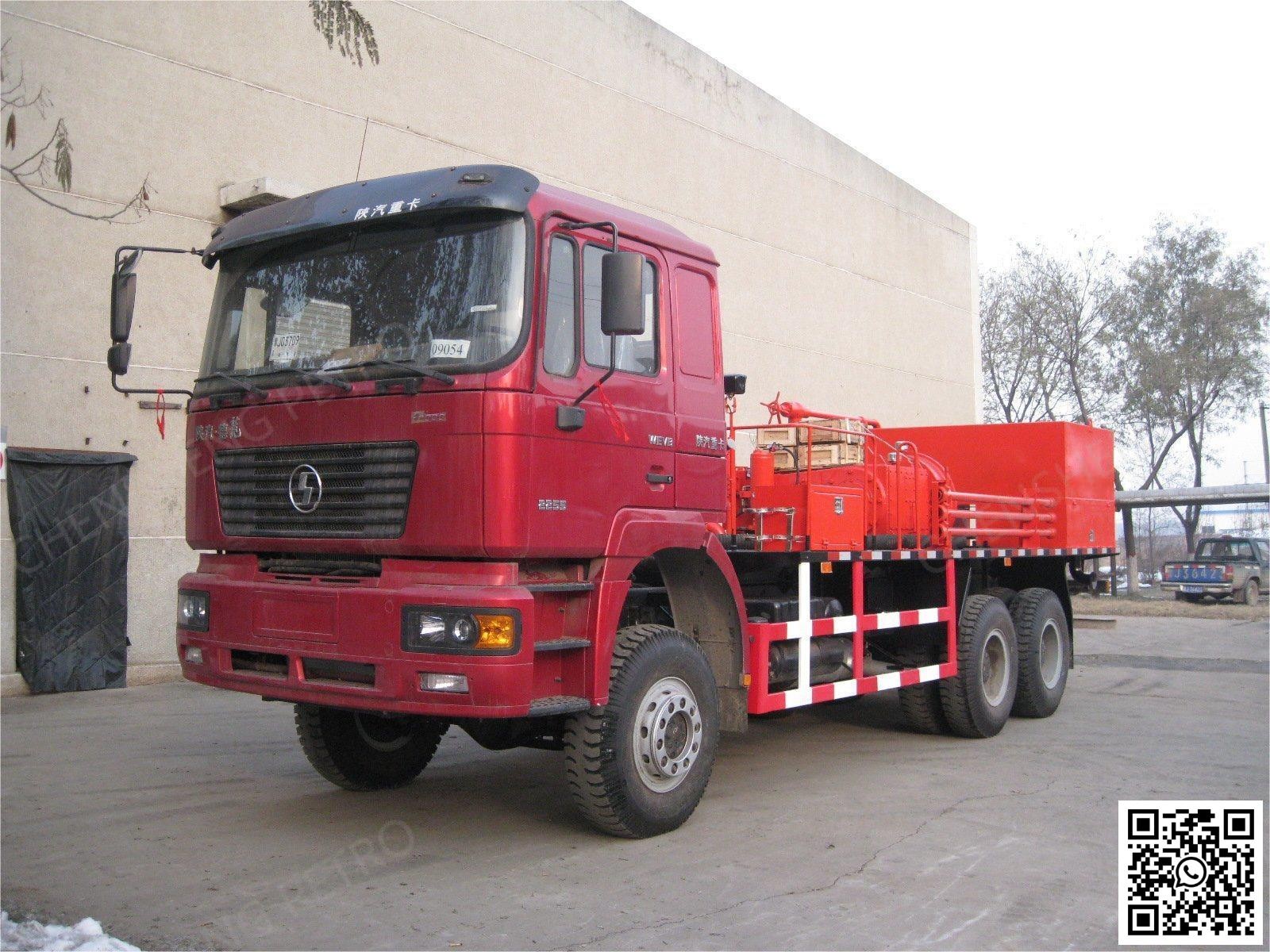

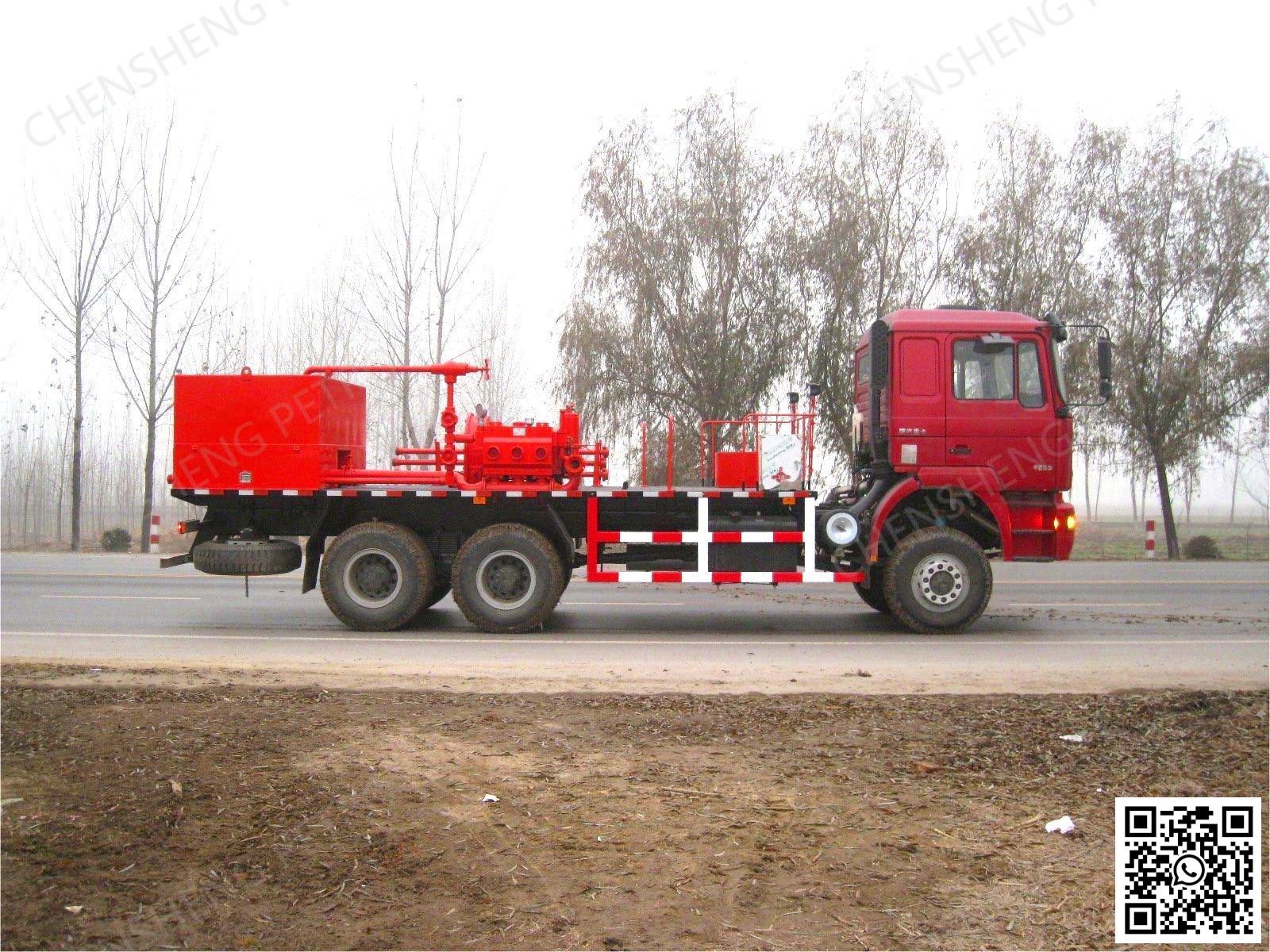

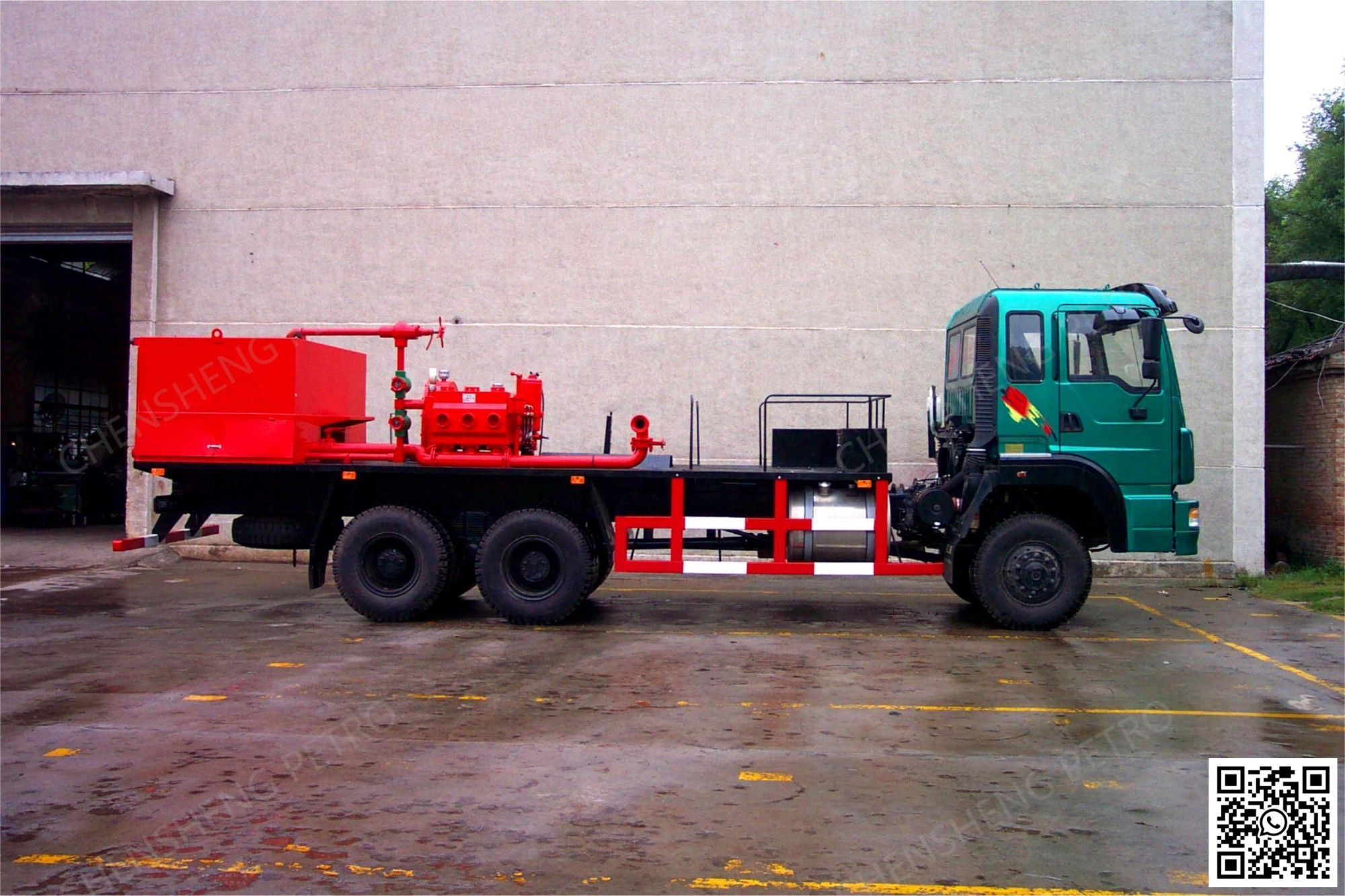

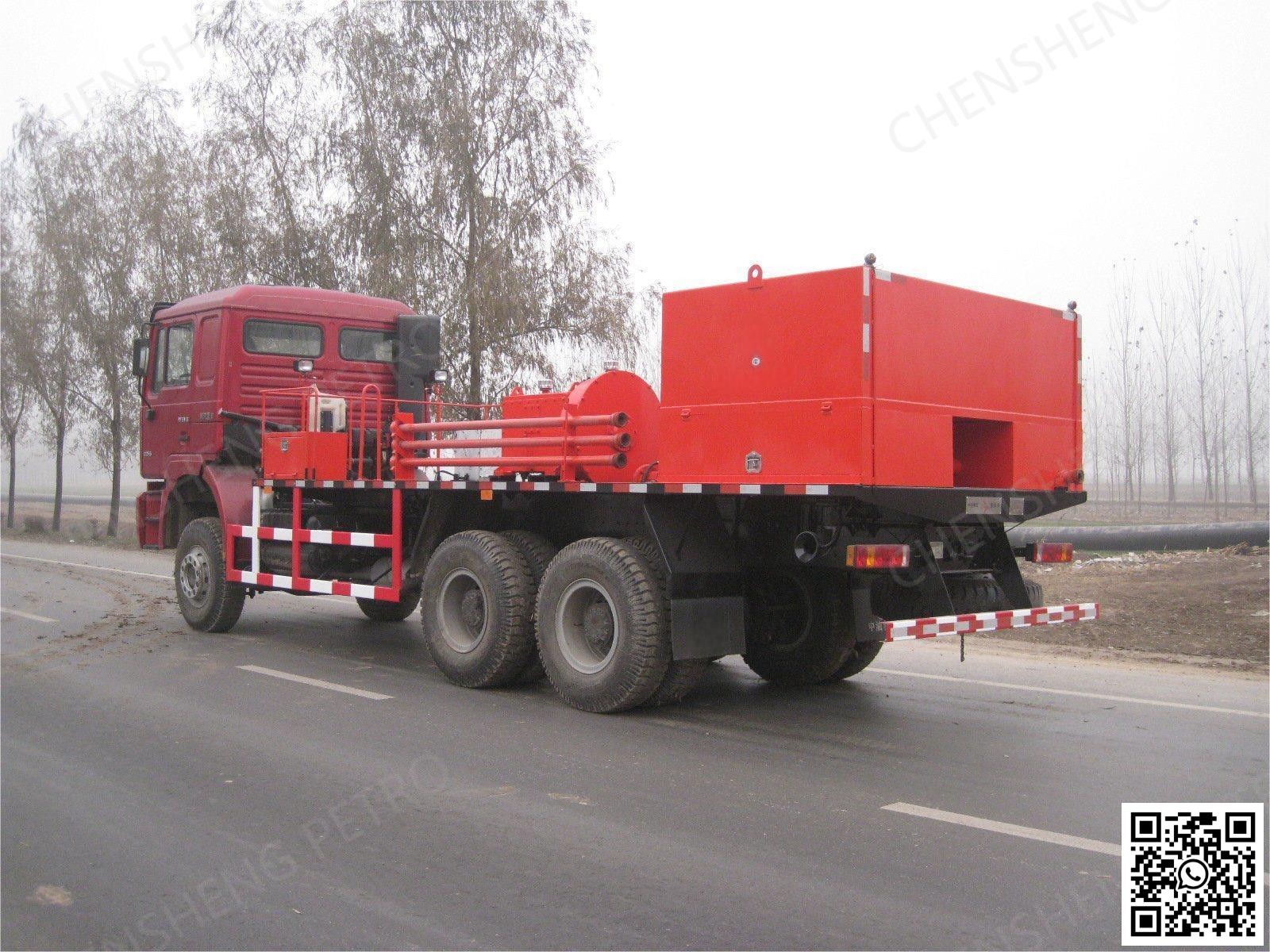

Well Flushing Truck

PRODUCT PARAMETER
model	well-flushing truck
Max. working pressure MPa(psi)	35(5076)
Max. working displacement m3/h(ft3/h)	Optional XJ3 well-flushing plunger pump: 50(1766) Optional XJ4well-flushing plunger pump: 74.3(2624)
Working medium	Clean water, crude oil
Working voltage VDC	24
Power source of triplex plunger pump	Chassis engine
Second-class chassis	North Benz/Shaanqi / SINOTRUK/Dongfeng
Driving type	4×2, 6×4, 6×6
Model of triplex plunger pump	XJ3	XJ4
Max. input power,kW(hp)	145(194)	186(249)
Qty. of plunger	3	3
Dia. Of plunger mm(in)	φ100(4")	φ115(4.5")
Stroke of plunger mm(in)	135(5.3")	152.4(6")
Lubrication type	Pressure forced lubrication	Pressure forced lubrication
Max. pressure MPa(psi)	35(5076)	35(5076)
Max. displacement m3/h(ft3/h)	50(1766)	80(2825)
Dia. Of suction pipe	4″	4″
Dia. Of discharge pipe	2″	2″
Full power PTO	Max. input torque,N.m:12000 Rated input torque,N.m:6700 Power taking speed ratio:1.0
Specification of well into pipeline	2″
volume of water cabinet m3(ft3)	2(70)
