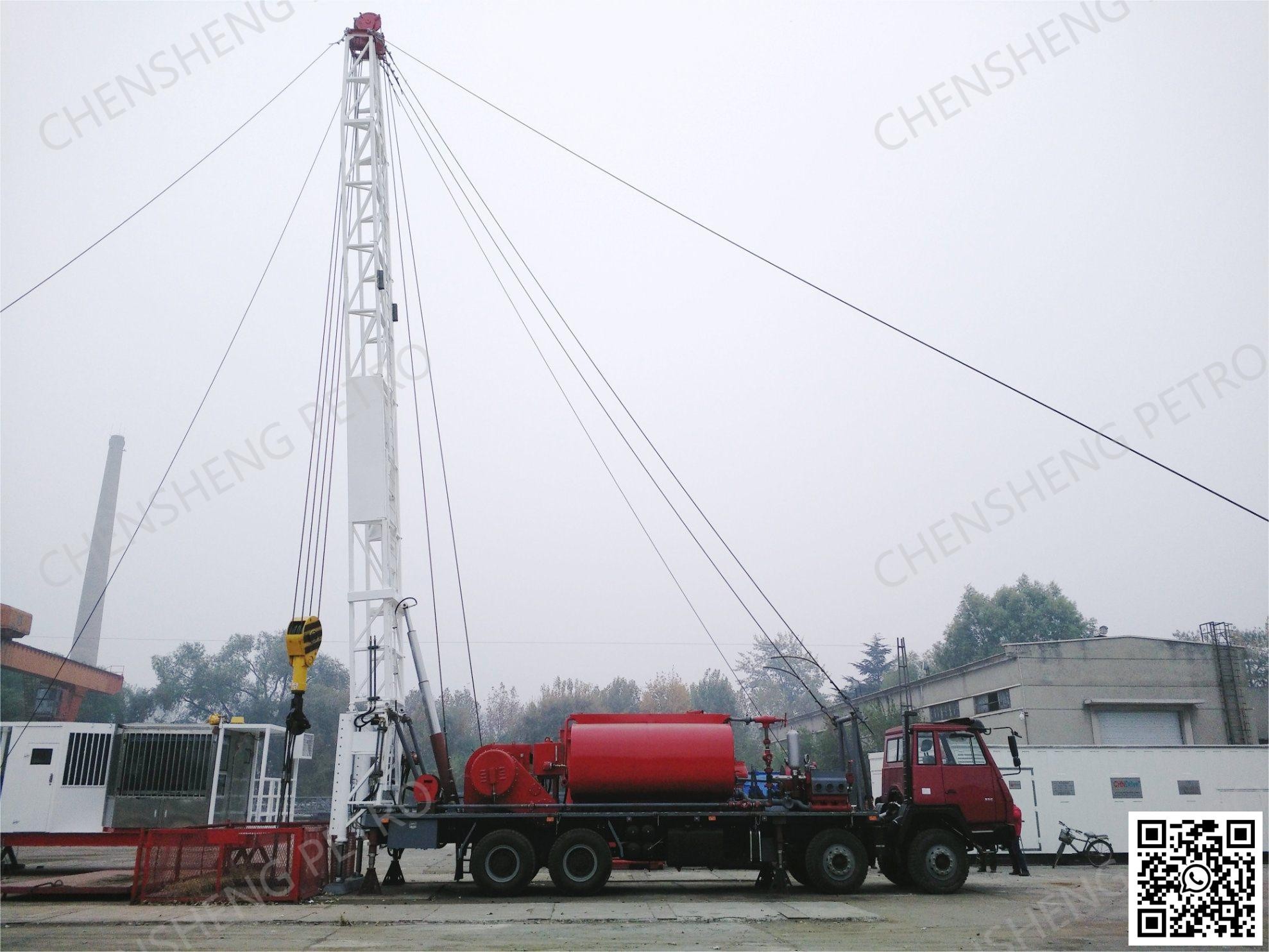

Our flush by unit (FBU) is designed and manufactured according to the principle " advanced performance, reliable operation, convenient mobilization, economic operation and meeting HSE requirement ". The performance and quality has reached or are beyond the advanced level of international similar workover rigs and confirming all the related APIs.
Its model is from 150hp to 550hp, from 30t to 100t,Its pump can both work seperately from the drawworks and with the drawworks at the time.

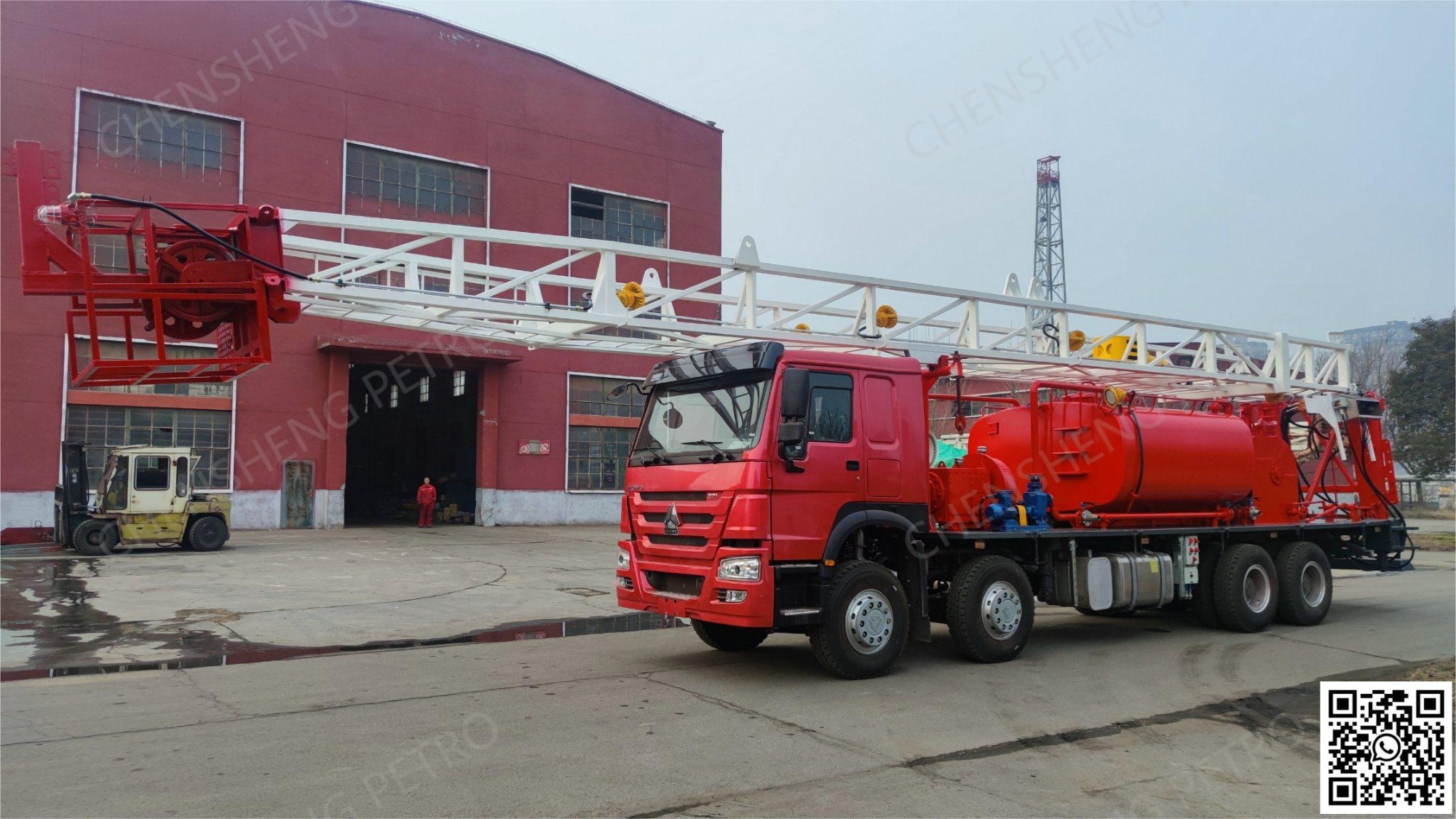

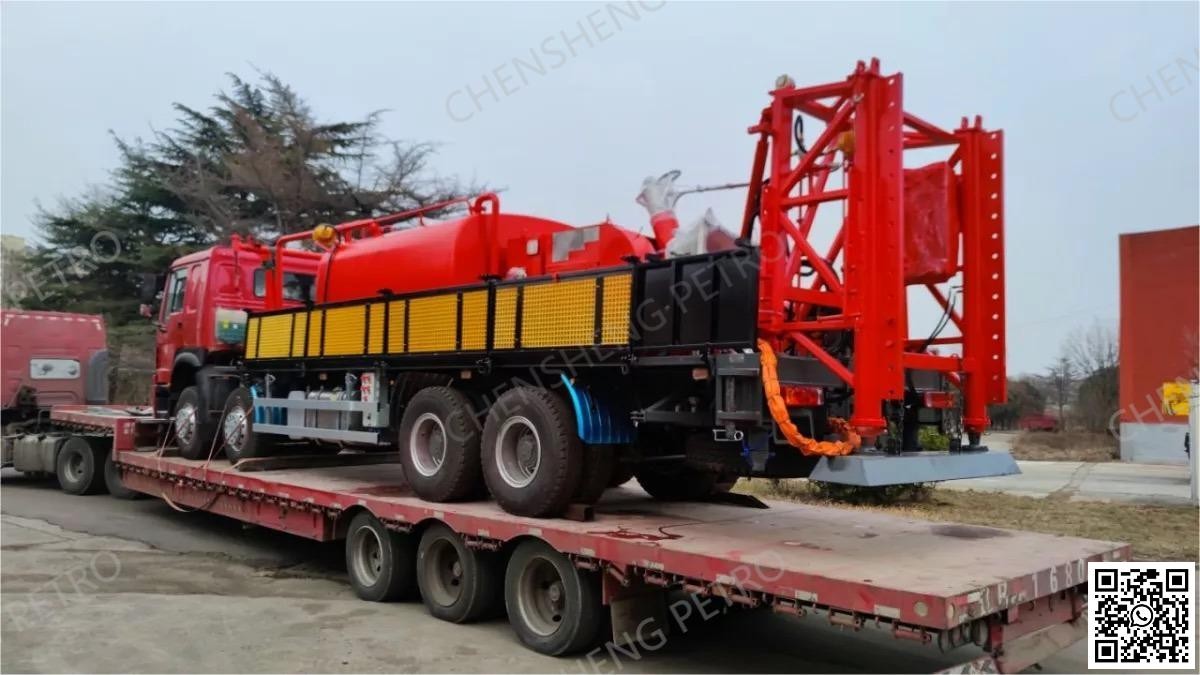

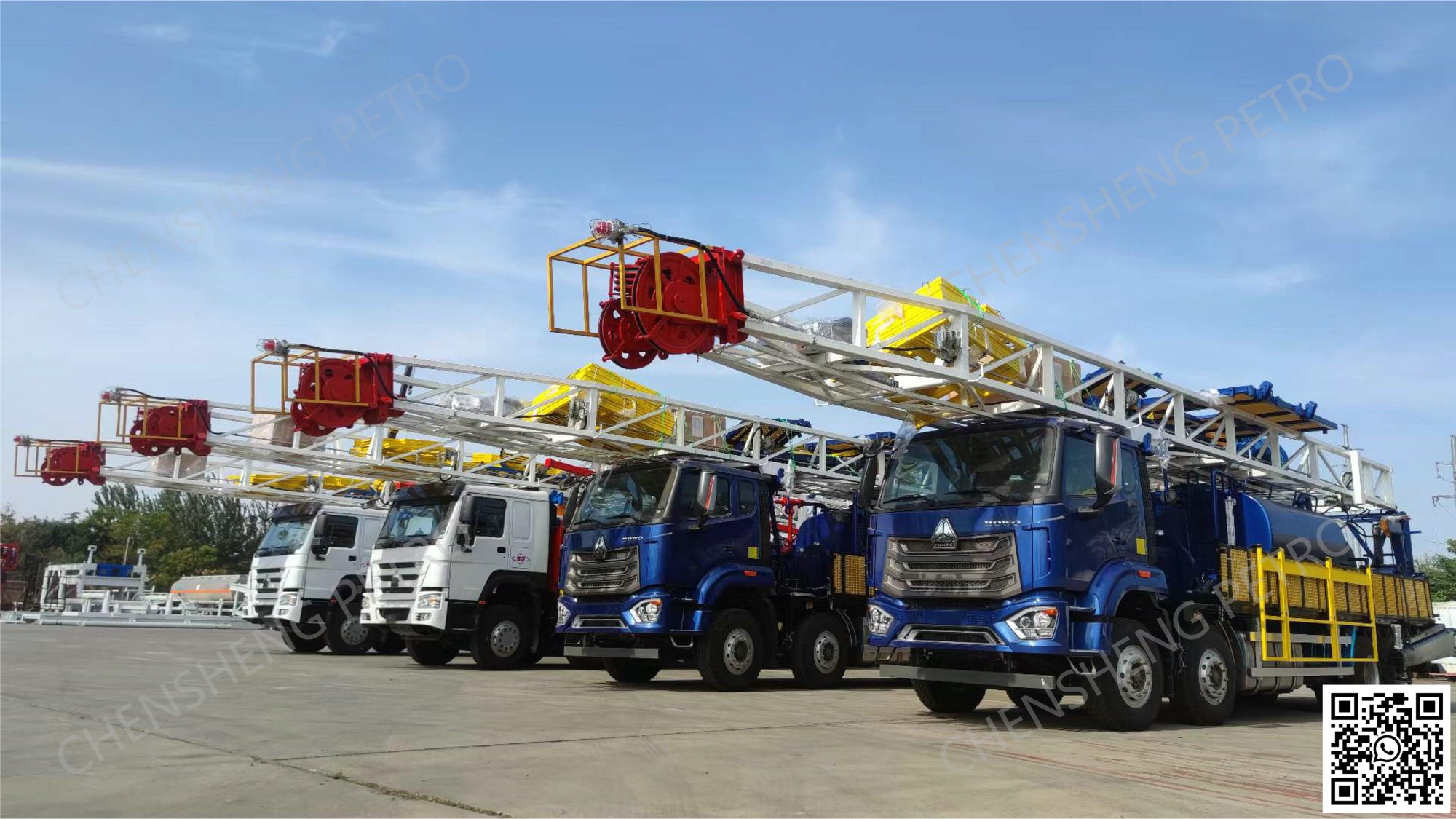

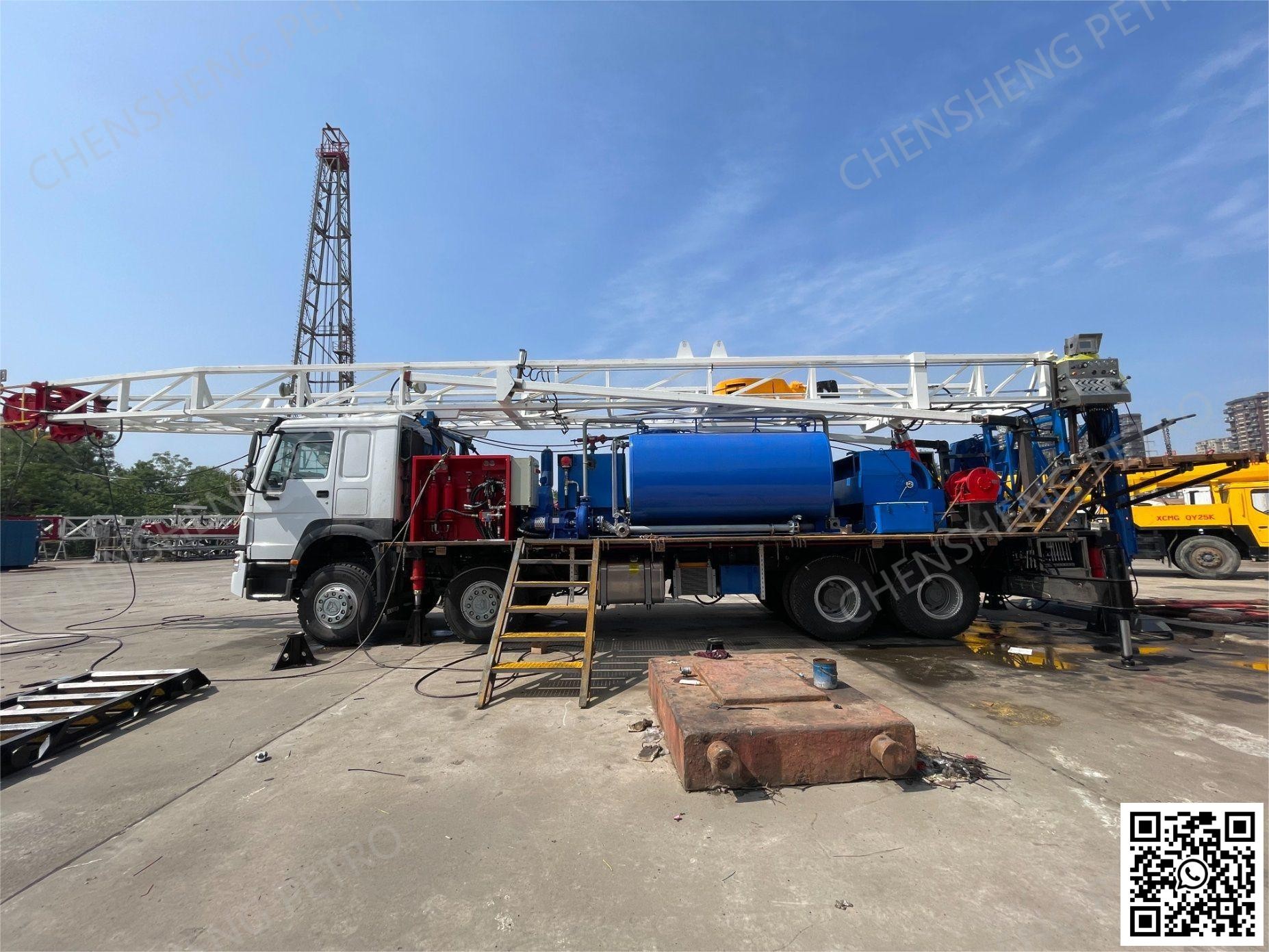

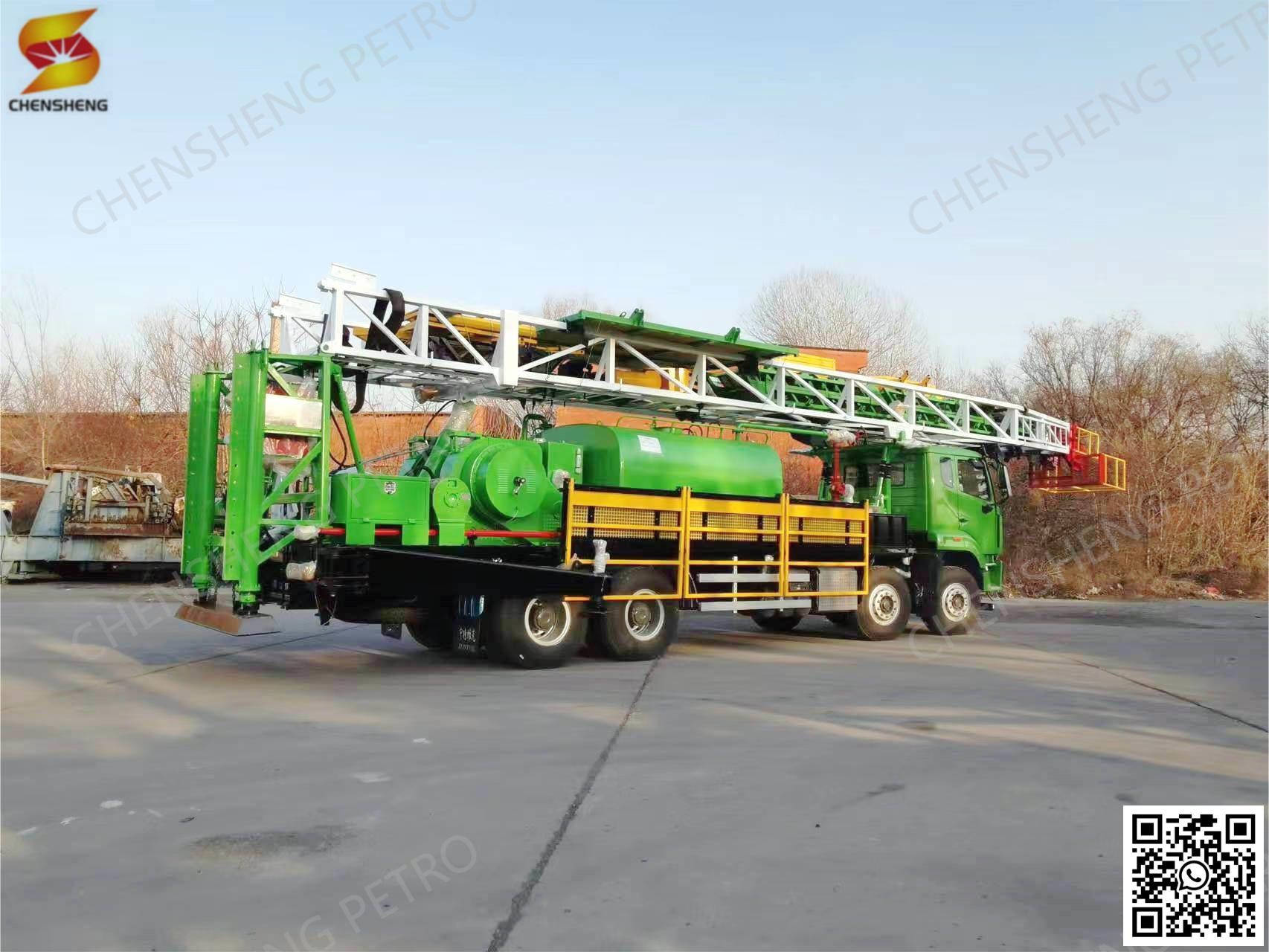

It consists of special Workover rig chassis, power transmission system, plunger pump, angle gearbox, drawworks with brake system, double type mast, traveling system with weight indicator, water tank, pneumatic and electrical systems for drilling control etc.This product is applied to workover job and sand flushing job of oil and water well etc.
Power system: high speed diesel engine, hydraulic mechanical transmission; diesel engine + hydraulic mechanical transmission; equipped with diesel engine and it matched with Allison hydraulic transmission box, with excellent performance.
Air-hydraulic control system: hydraulic system is used for leveling hoisting hydraulic jack, mast raising, mast support cylinder and the working of hydraulic tong. Air system is used for the controlling winch clutch, emergency brake cylinder, the throttle of triplex plunger pump. It realizes combination and separation of the clutch and winch brakes in emergency.
| PRODUCT PARAMETER | ||||||
| No | Model | XJ150/40T FBU | XJ250/70T FBU | XJ350/90T FBU | XJ450/110T FBU | XJ550/135T FBU |
| 1 | Power (HP) | 150 | 250 | 350 | 450 | 550 |
| 2 | Rated load (T) | 30 | 50 | 60 | 80 | 100 |
| 3 | Max. load (T) | 40 | 70 | 90 | 110 | 135 |
| 4 | Mast height (ft) | 59/69 | 69 | 95/102 | 102/108/115 | |
| 5 | Nominal small workover depth (m) | 2600 | 3200 | 4000 | 5500 | 7000 |
| 6 | Large workover depth (m) | ------- | 2000 | 3200 | 4500 | 5800 |
| 7 | Wireline diameter (mm) | 19/22 | 22 | 1"(26) | ||
| 8 | Drive type | 6×4/8×4 | 6×6 | 8×8 | 10×8 | 10×8/12×8 |
| 9 | Traveling system | 3×4 | 4×5 | 3×4 | 4×5 | 4×5 |
| 10 | Drawworks | JC08 | JC12 | JC18 | JC21 | |
| 11 | Pump | 35MPa | ||||
| 12 | Water tank (L) | ≤9000 | ||||
| 13 | Work platform | Platform area 4m×2.9 m | Adjustable height range of platform: 1.2m-2.7m | |||
Foreign Cooperation Display

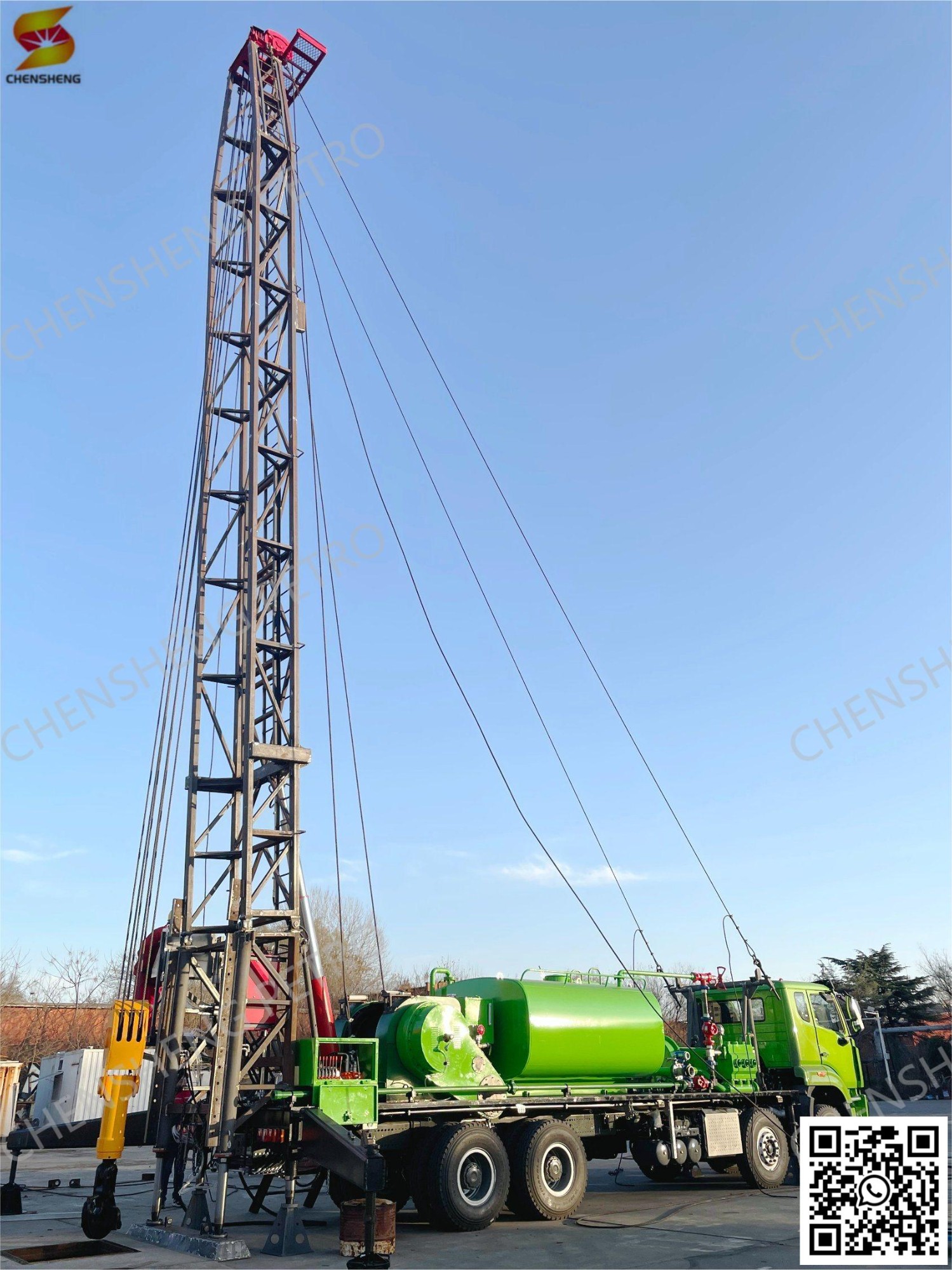

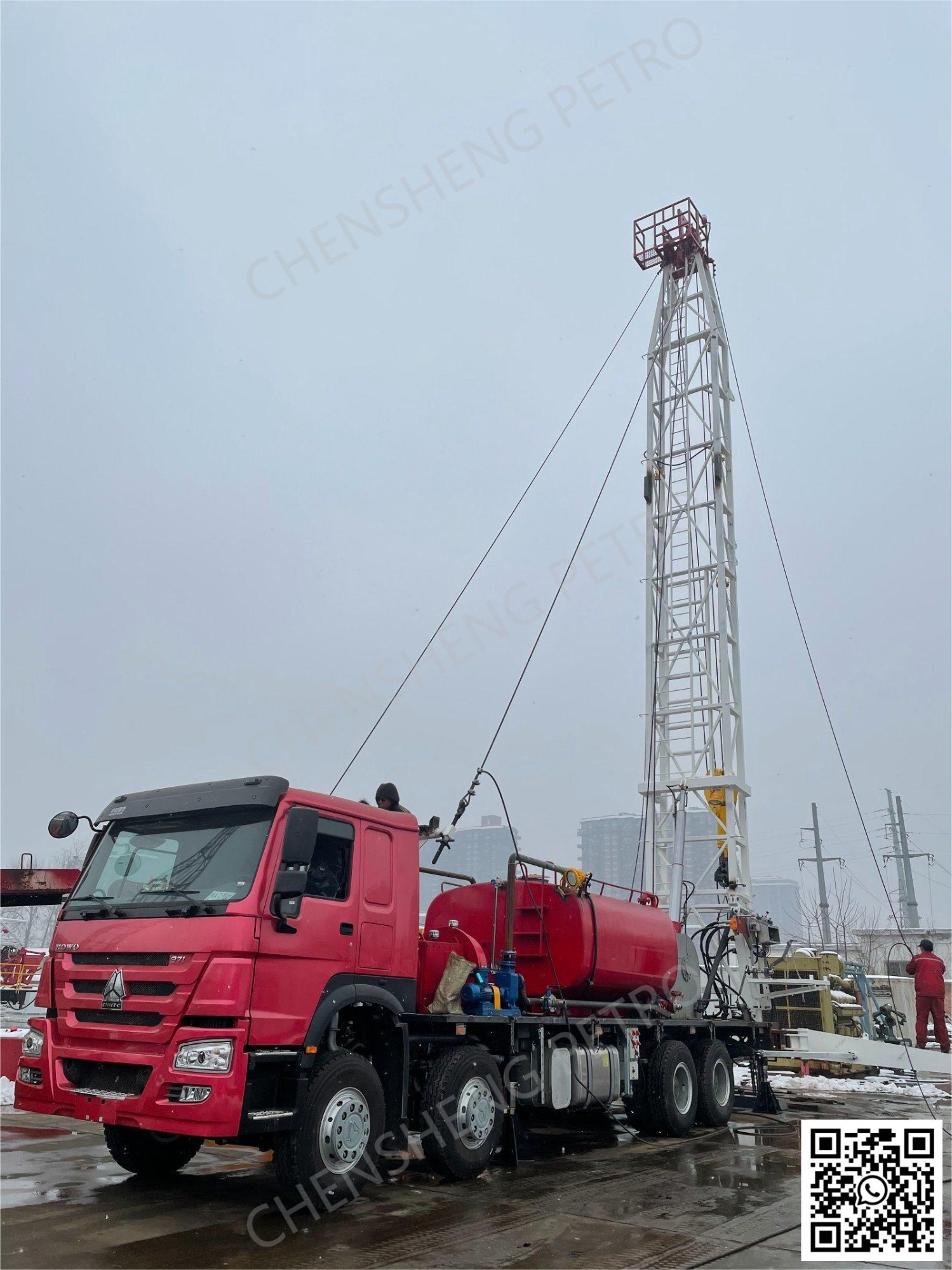

On Site Work Display

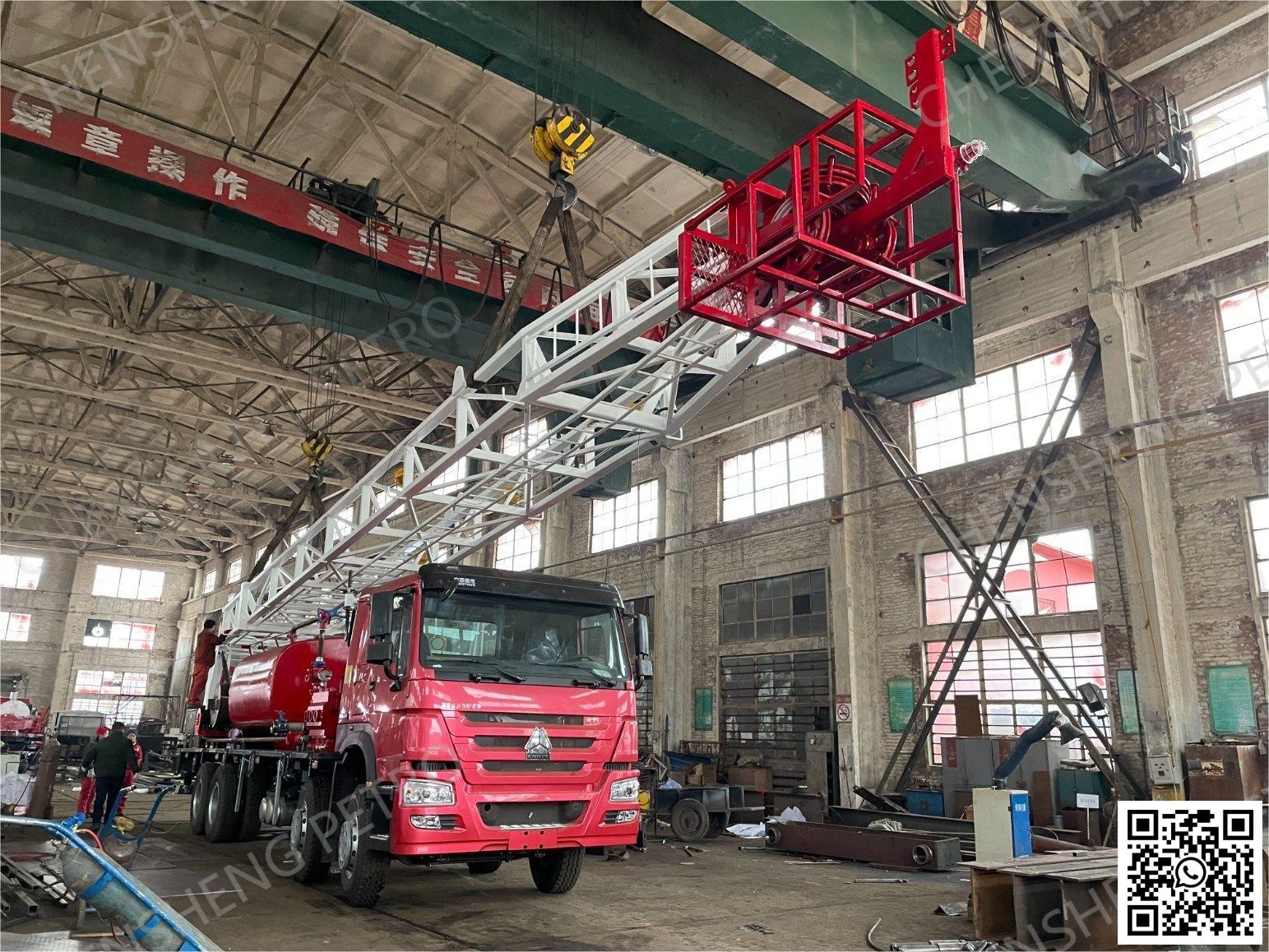

Internal Factory Display
