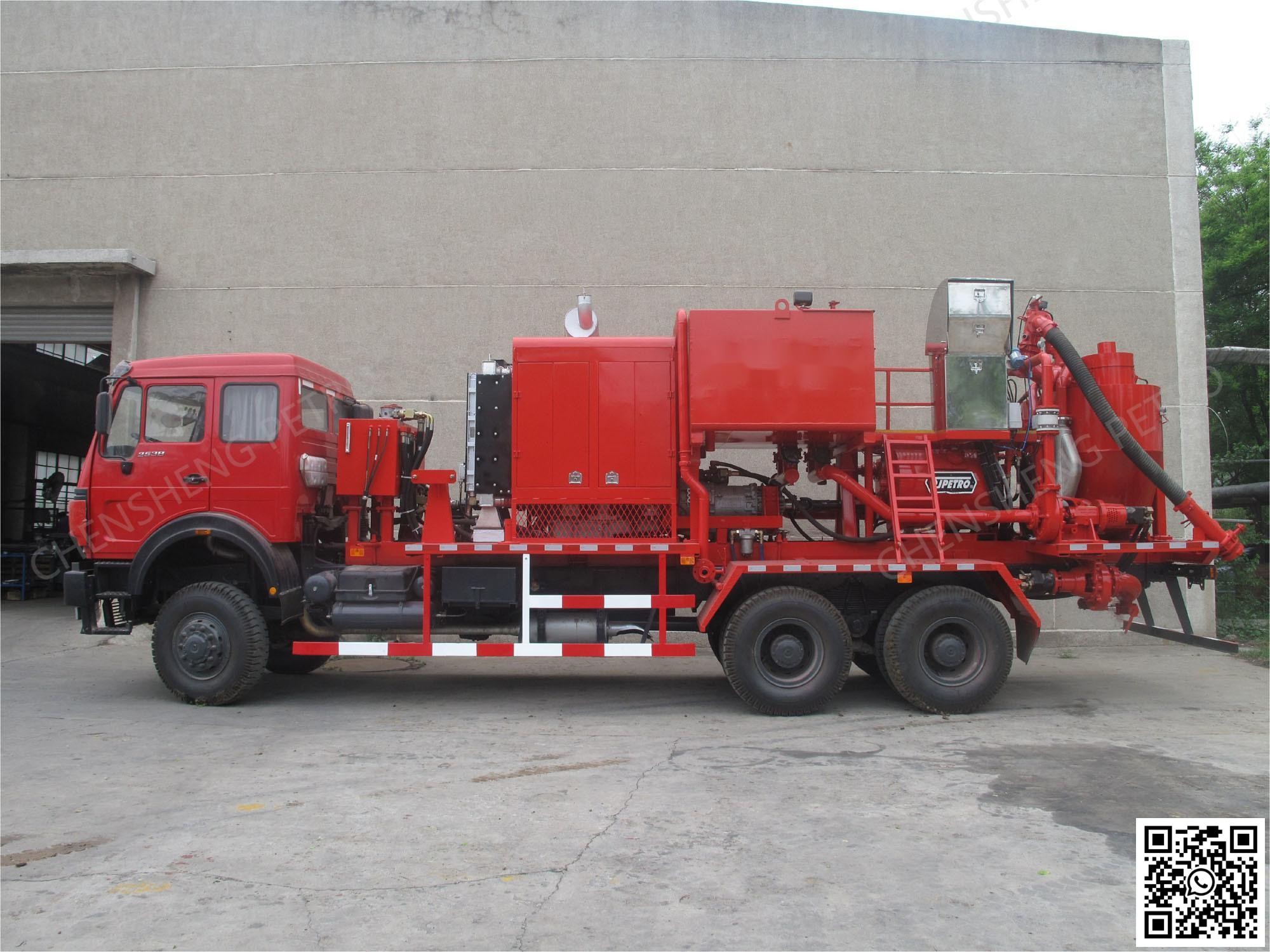

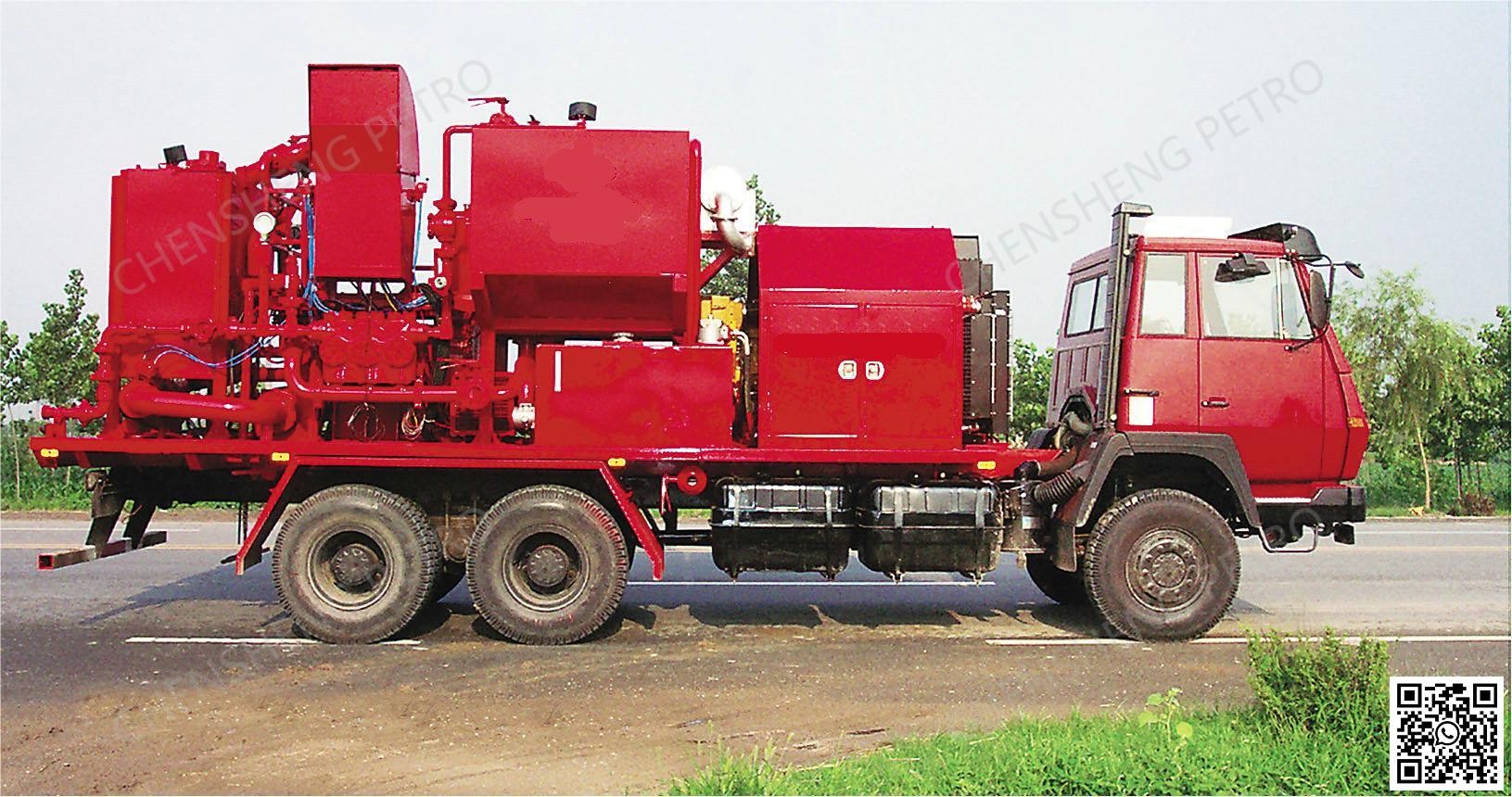

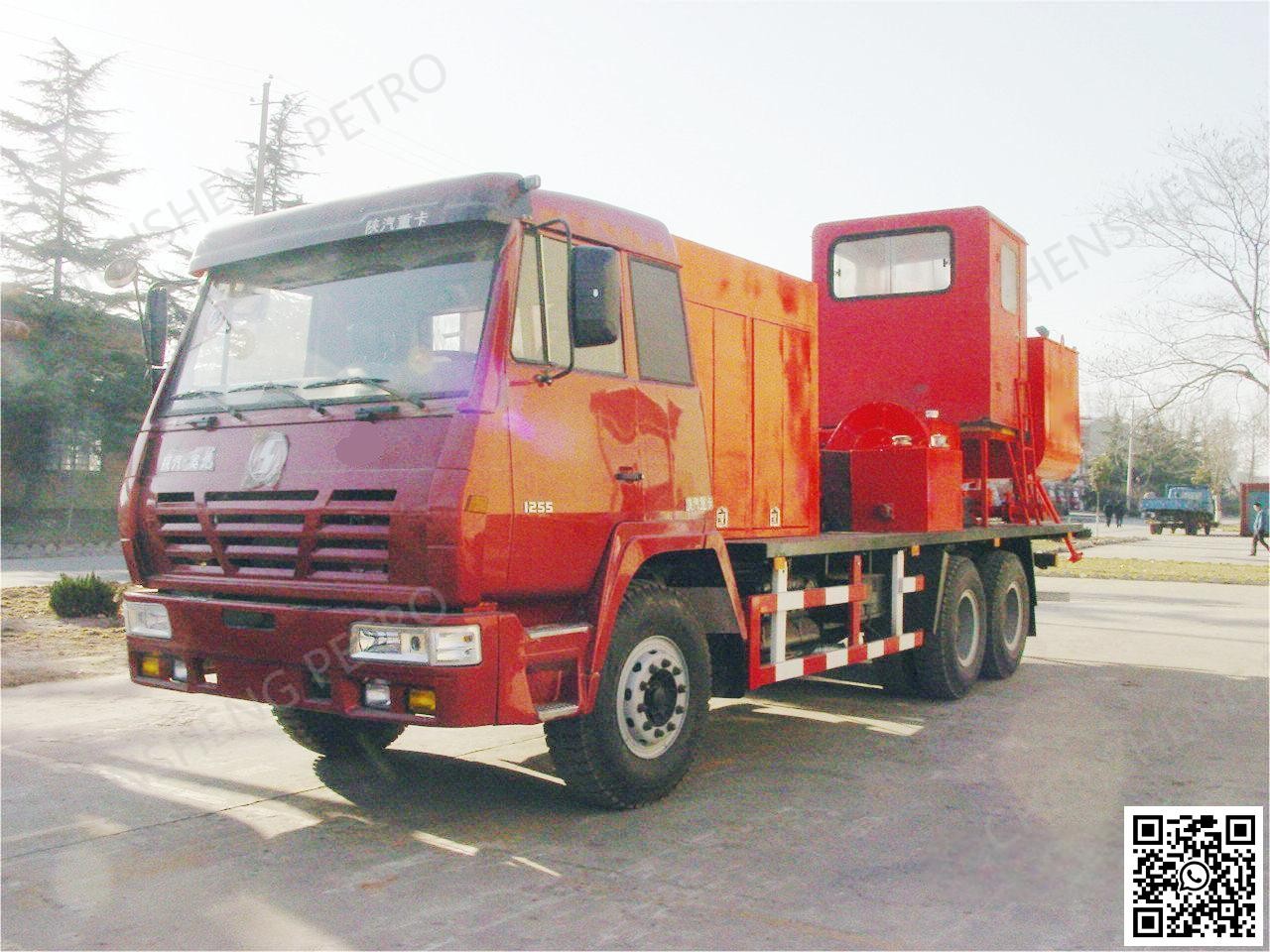

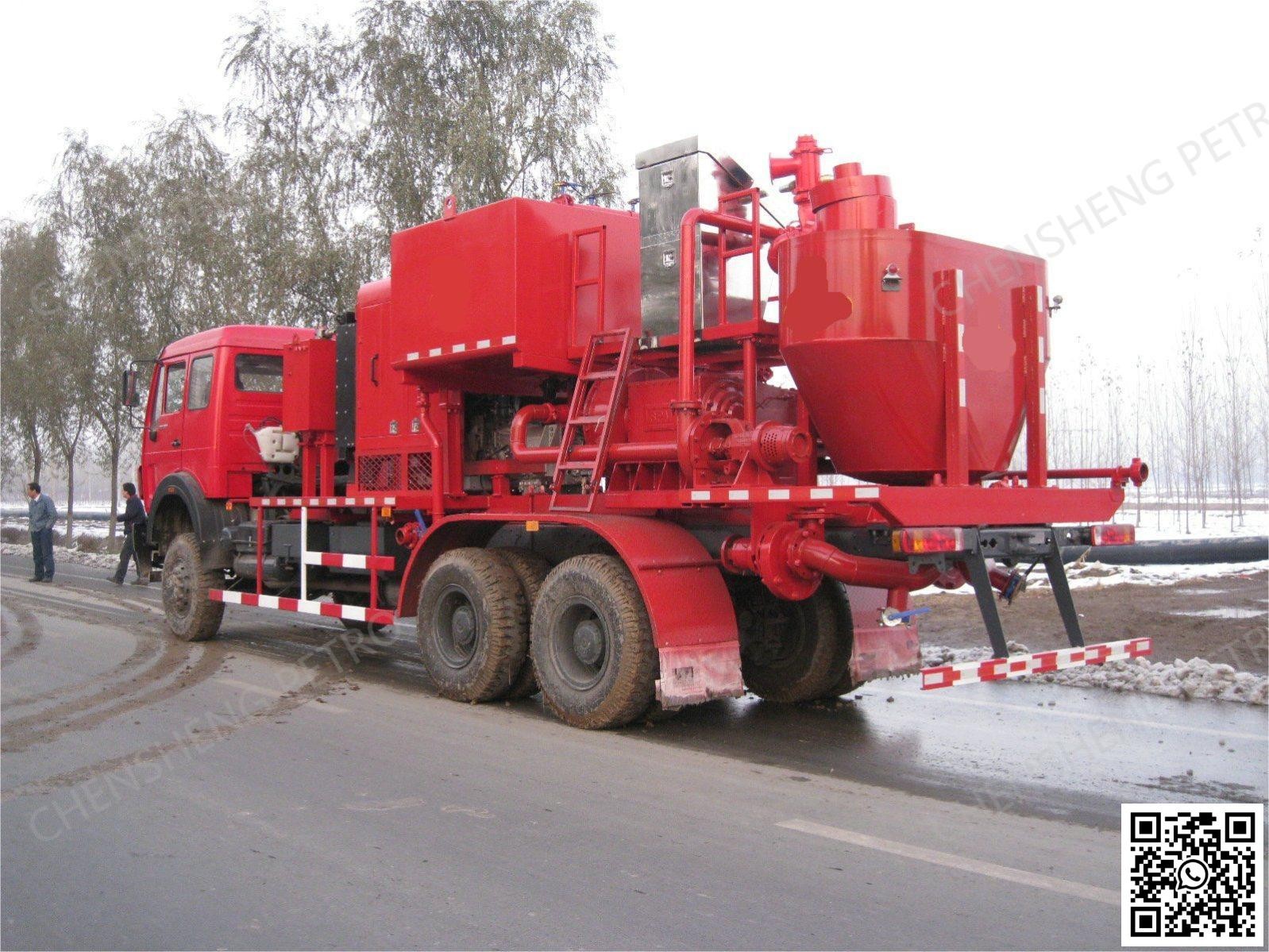

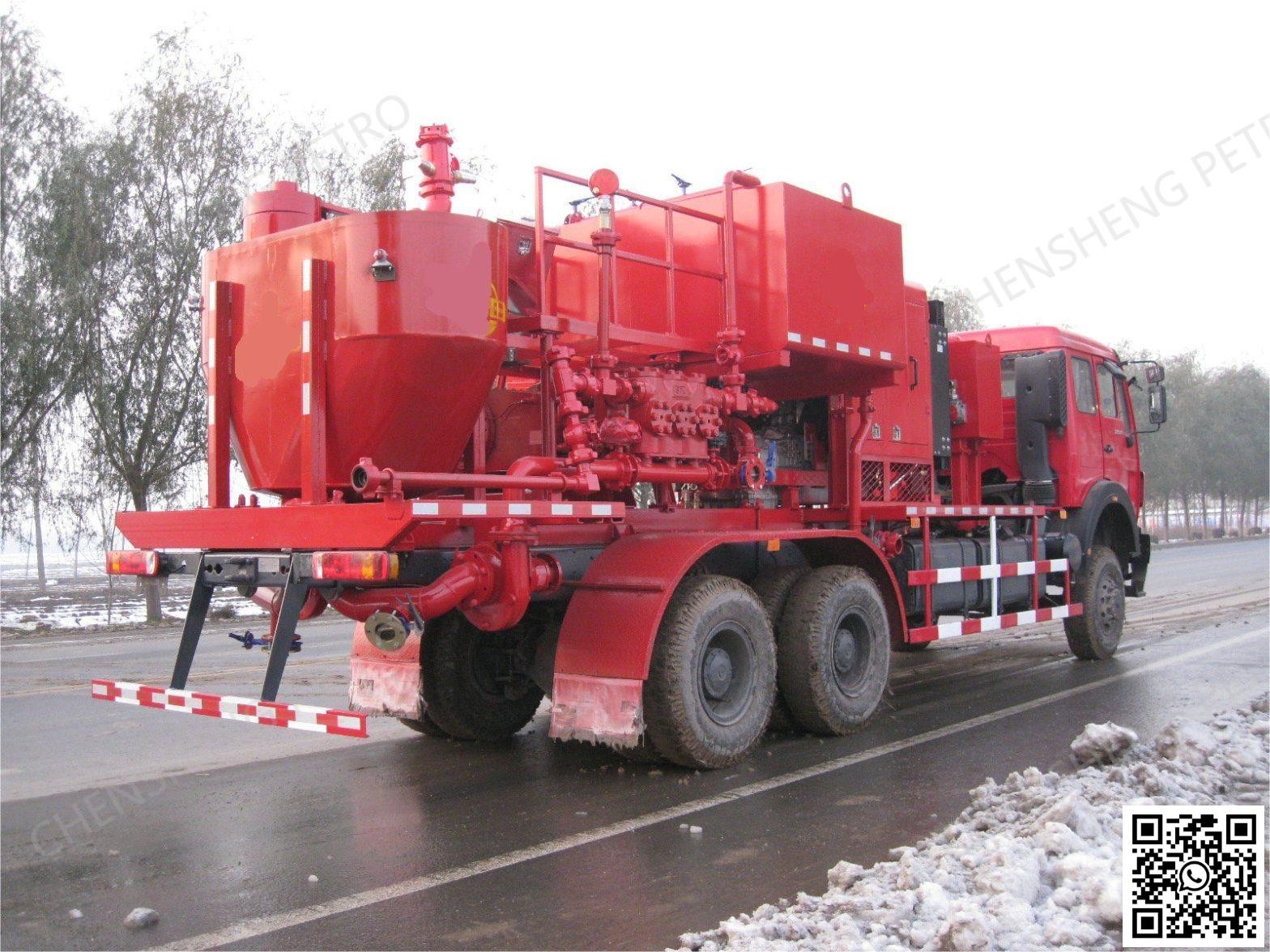

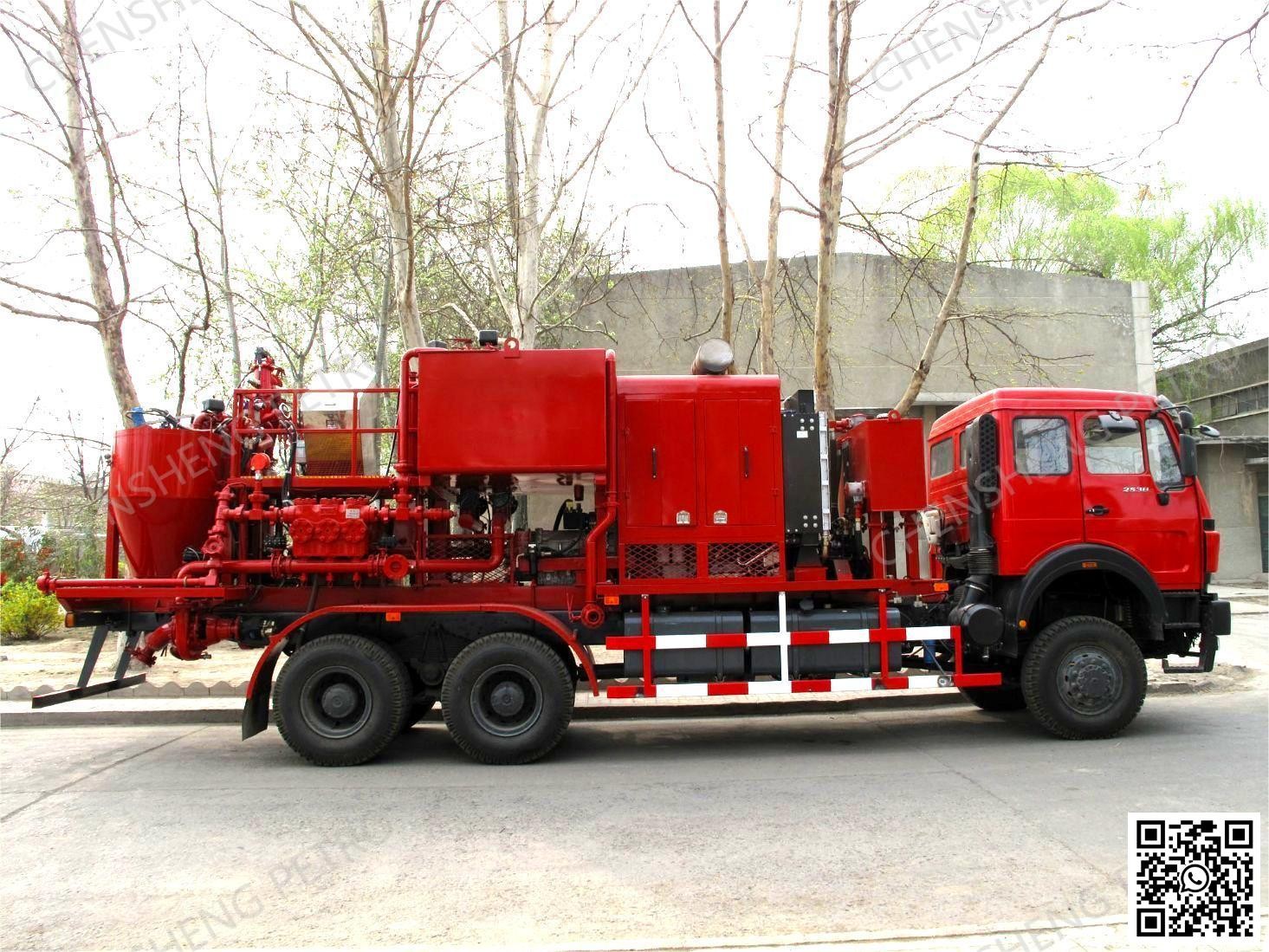

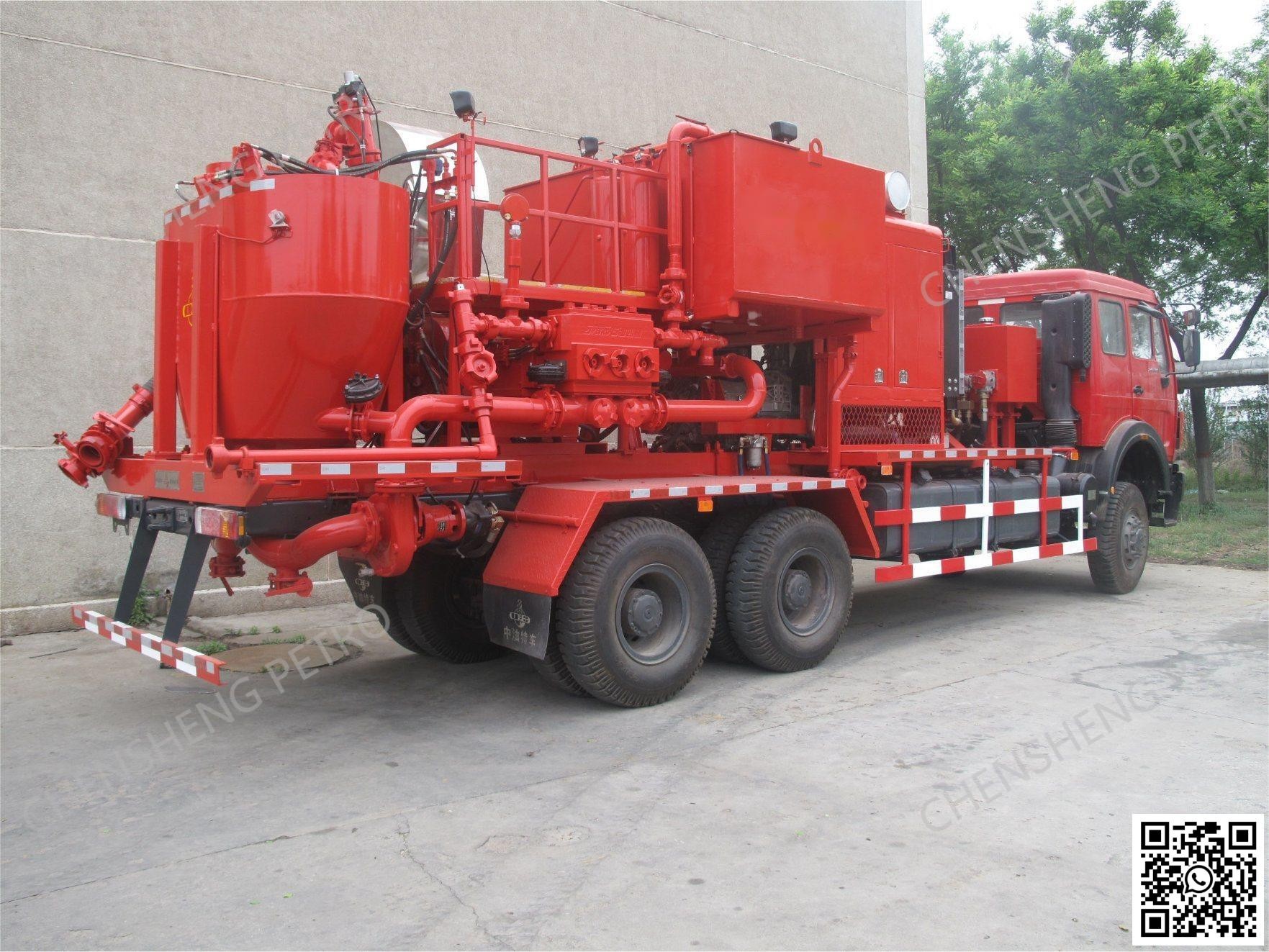

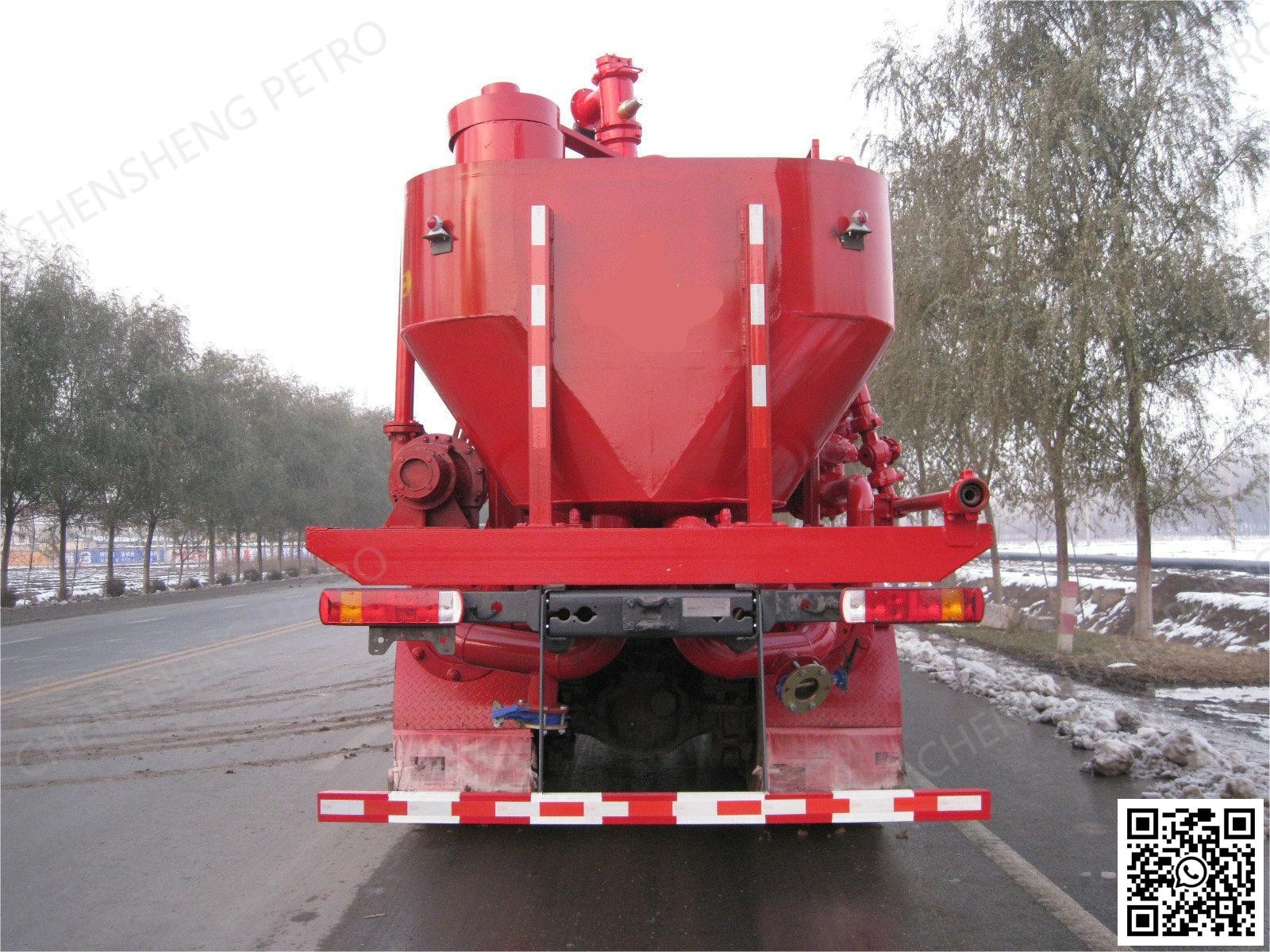

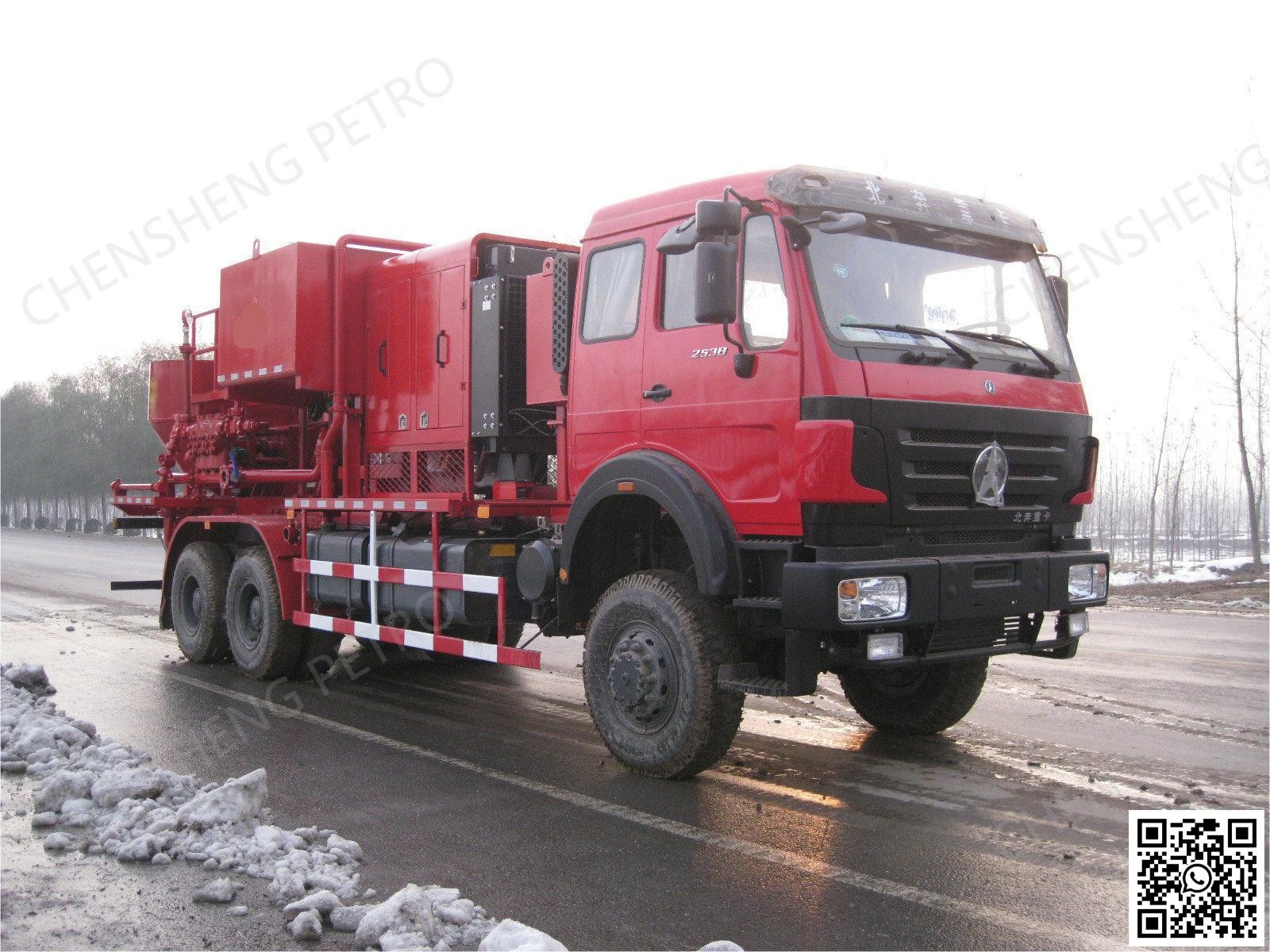

Cementing truck is the most widely used core product in cementing equipment series.
According to the different forms of the gearbox, it can be divided into mechanical cementing truck and hydraulic cementing truck.
| PRODUCT PARAMETER | ||||
| Model | Common cementing truck (40Mpa / 70Mpa) | |||
| Transmission type (Optional) | Hydraulic / Mechanical | |||
| Max. working pressure MPa (psi) (Optional) | 40(5800) / 70(10152) | |||
| Max. theoretical displacement （m3/h） | Hydraulic (Optional) | 40MPa:100 (115mm plunger) 70MPa:60 (90mm plunger) | ||
| Mechanical (Optional) | 40MPa:78 (115mm plunger) 70MPa:60 (90mm plunger) | |||
| Working medium | Water, cement slurry, drilling fluid | |||
| Truck chassis | North Benz, ShaanXi Truck are optional | |||
| Driving type | 6×4,6×6 | |||
| Engine | Type 400 (optional) | 1 | Model | VOLVO TAD1352VE |
| Manufacturer | Sweden VOLVO Co. | |||
| Spec. | 315kW / 1900rpm | |||
| 2 | Model | MWM TBD234V8 | ||
| Manufacturer | Henan Diesel Engine Industry Co., Ltd | |||
| Spec. | 303kW / 1800rpm | |||
Type 700 (optional) | 1 | Model | VOLVO TAD1353VE | |
| Manufacturer | Sweden VOLVO Co. | |||
| Spec. | 345kW / 1900rpm | |||
| 2 | Model | MWM TBD234V8 | ||
| Manufacturer | Henan Diesel Engine Industry Co., Ltd | |||
| Spec. | 333kW / 2100rpm | |||
| Gearbox | Hydraulic gearbox (optional) | Type:BY400 Type:BY620 | ||
| Mechanical gearbox (optional) | 400Type:CV5-340 700Type: CV-12-351A | |||
| Clutch (if install mechanical gearbox) | SP314P110 | |||
| Triplex cylinder plunger pump | Model | 400Type | 3ZB-300/40 (self-made) | |
| 700Type | 3ZB-300/70 (self-made) | |||
| Max. input power kW | 300 | |||
| Qty. of plunger | 3 | |||
| Plunger diameter mm | 400Type: 115,100 700Type: 90 | |||
| Plunger stroke mm | 160 | |||
| Ratio | 4.6(Hydraulic) / 2.03(Mechanical) | |||
| Max. working pressure MPa (psi) | 40(5800) / 70(10152) | |||
| Max. theoretical displacement（m3/h） | 40MPa: Hydraulic100 (115mm plunger) / Mechanical78 (115mmplunger) 70MPa: 60 (90mm plunger) | |||
| Water tank volume （m3） | 4 | |||
Features：
Cementing truck is the most widely used core product in cementing equipment series.
The equipment does not have automatic mixing system, the deck, engine, gearbox, triplex cylinder plunger pump, metering cabinet, liquid gas system and control system on the truck chassis, it is mainly used in oil field well cementing and washing. This equipment will name mechanical cementing truck if install the mechanical gearbox on the deck, and it will name hydraulic cementing truck if install the hydraulic gearbox on the deck. The optional chassis: ShaanXi Truck(6×4), North Benz(6×4), etc.
This equipment with the feature of high pressure, large displacement, high efficiency, safety and durability
The control system is simple and safe to operate, which accord with the field operation requirements and habits.
The displacement measurement system, the operating room and 30 meters wired remote control are optional, meet the user individual requirements.
